SX-CAN — JLR CAN Bus Communication Tool

SX-CAN provides direct CAN bus access for JLR vehicles. Low-level diagnostics, custom message injection, and module communication for advanced programming tasks.

SX-CAN is our own CAN bus communication tool for JLR vehicles. It provides direct access to the vehicle's Controller Area Network (CAN) for low-level diagnostics, custom message injection, and advanced module communication.

What is SX-CAN?

SX-CAN is a specialised tool that connects directly to the vehicle's CAN bus, allowing us to send and receive messages at the protocol level. This is essential for advanced diagnostics, troubleshooting communication faults, and working with modules that require custom message sequences. Standard dealer tools operate at a higher level and cannot perform these low-level tasks.

Buy Demo SX-CAN 1-VIN Buy Official SX-CAN 1-Year

Key Features

  • Direct CAN bus access — read and write CAN messages directly
  • Custom message injection — send specific messages to test modules
  • Protocol-level diagnostics — identify communication faults
  • Module communication — talk to modules that standard tools cannot reach
  • Multi-CAN support — works with all JLR CAN networks (HS-CAN, MS-CAN, LS-CAN)
  • Gateway bypass — access modules behind gateway restrictions
  • Real-time monitoring — watch live CAN traffic

What Can SX-CAN Do?

  • Diagnose communication faults between modules
  • Test modules with custom message sequences
  • Access modules behind gateway restrictions
  • Monitor live CAN bus traffic for anomalies
  • Inject custom messages for testing and configuration
  • Work with prototype and modified modules
  • Recover modules from communication lockouts

SX-CAN in Action

The screenshots below show the SX-CAN interface used by our technicians for CAN bus diagnostics, module programming, and vehicle configuration. This is the actual tool we use for low-level communication and advanced JLR programming tasks.

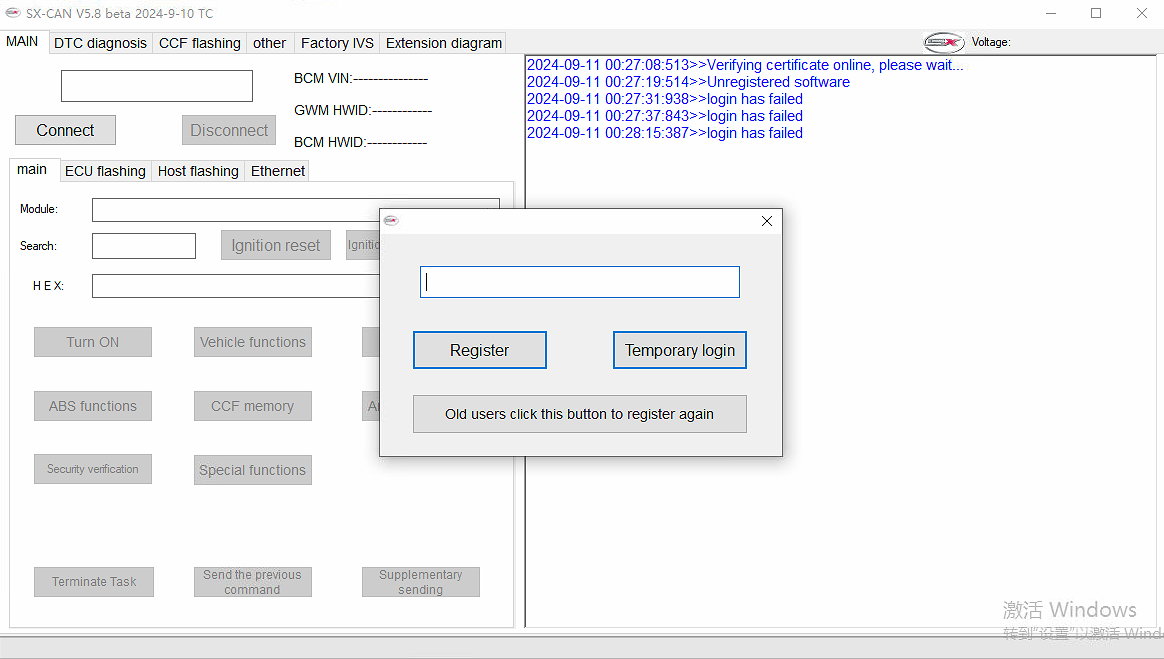

SX-CAN — Main interface — SX-CAN application overview and status
Main interface — SX-CAN application overview and status

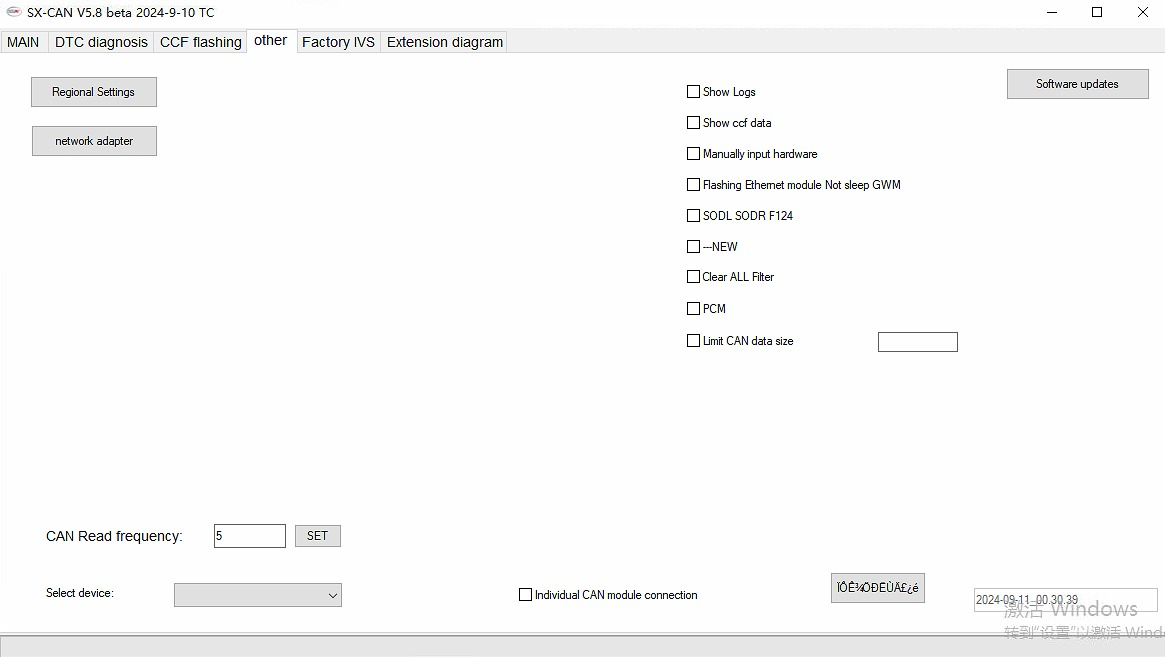

SX-CAN — Connection setup — Vehicle communication configuration
Connection setup — Vehicle communication configuration

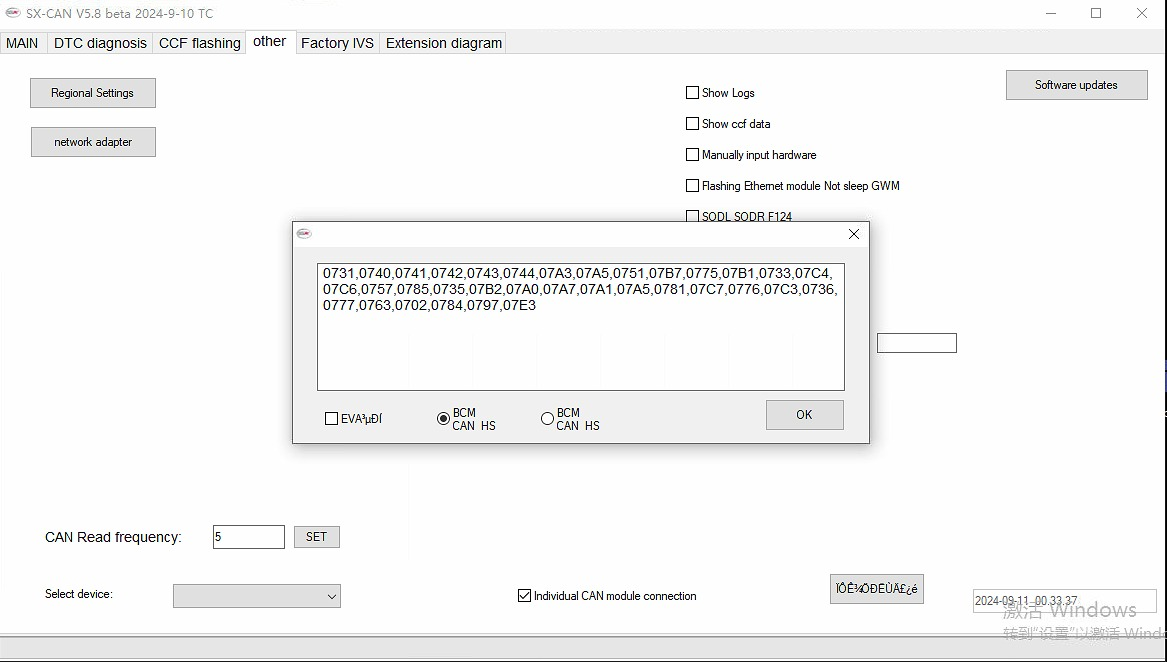

SX-CAN — Diagnostics view — Live data and system monitoring
Diagnostics view — Live data and system monitoring

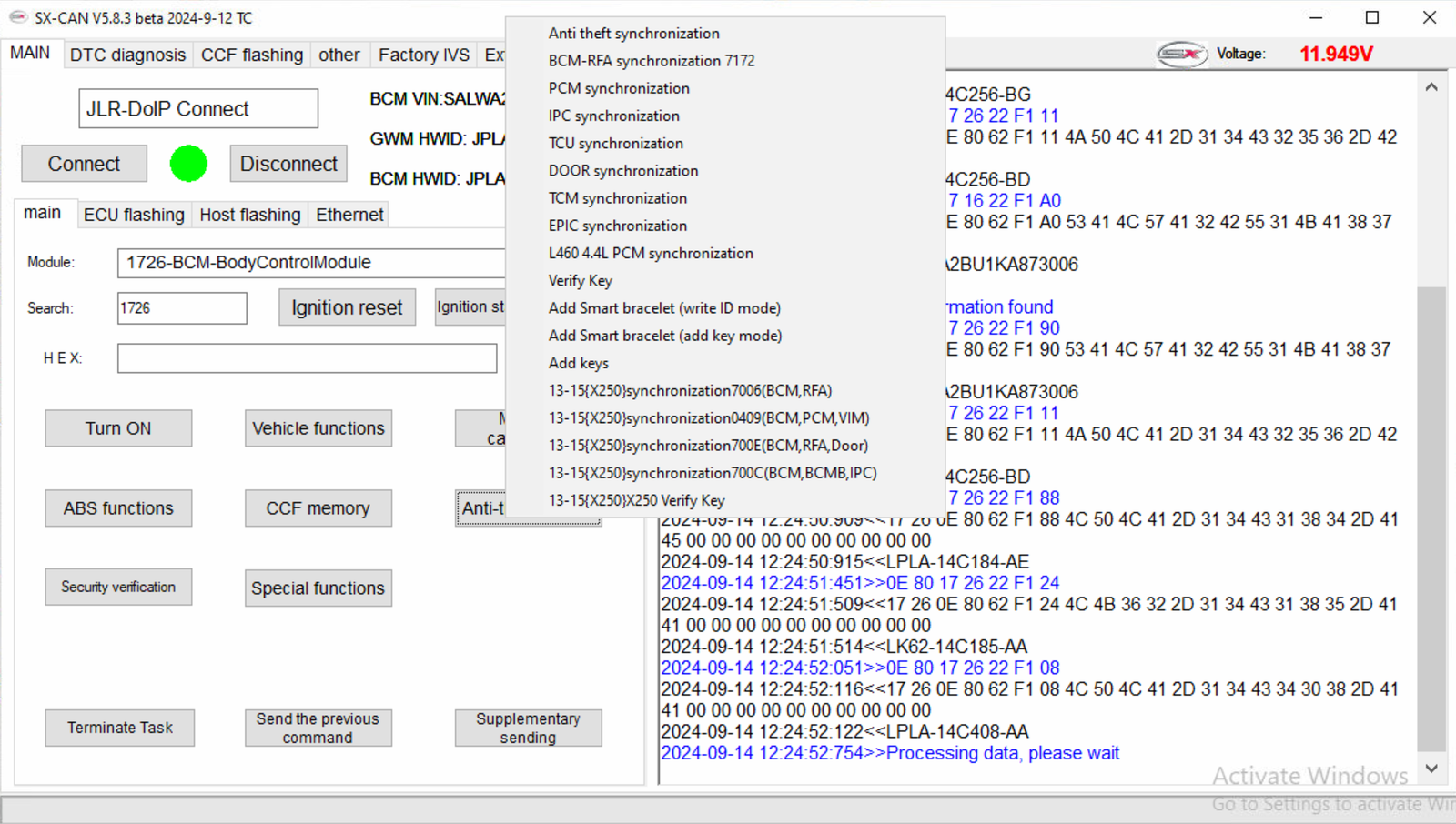

SX-CAN — Anti-theft system — Security module access and functions
Anti-theft system — Security module access and functions

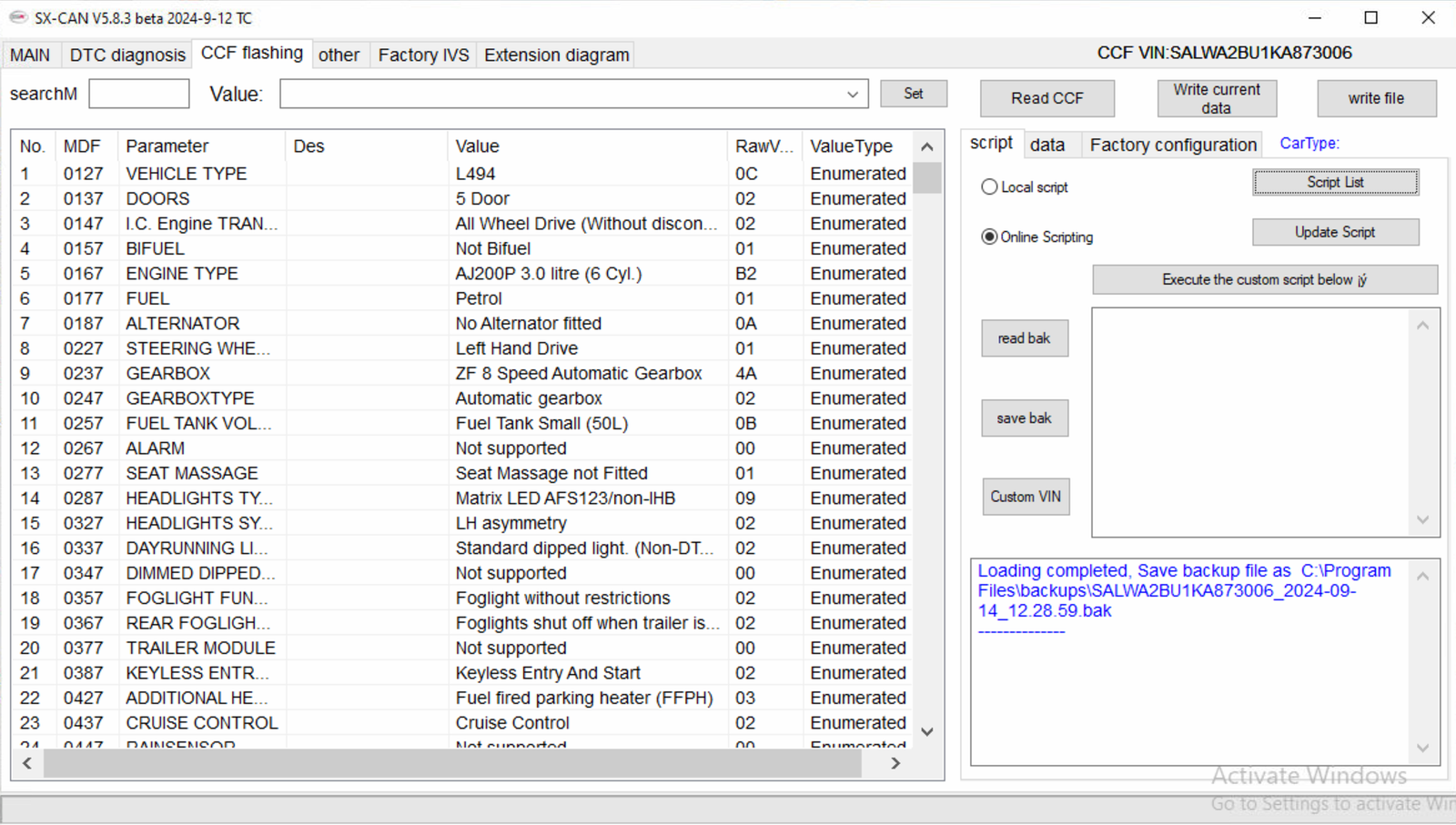

SX-CAN — CCF flashing — Customer configuration file programming
CCF flashing — Customer configuration file programming

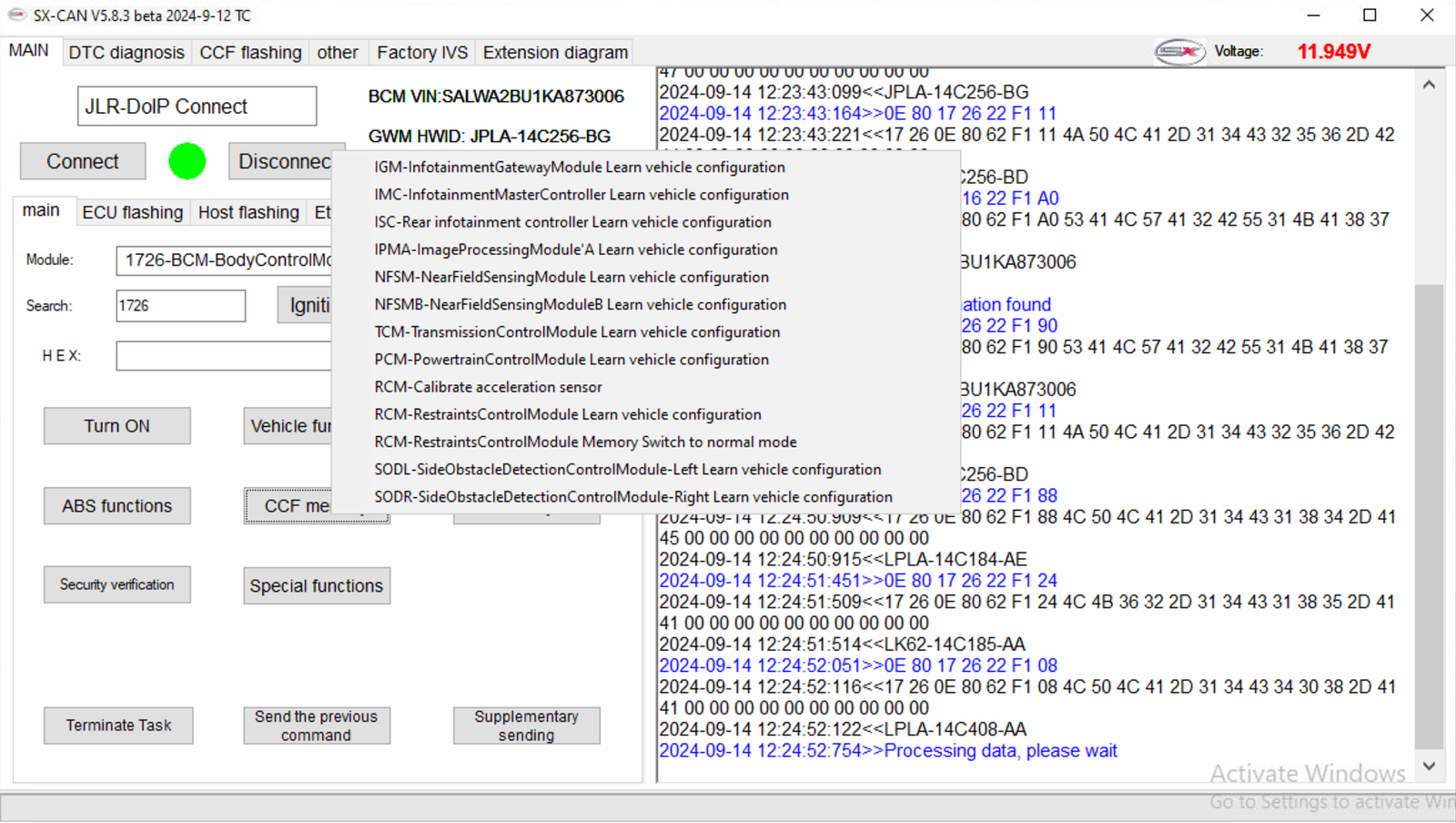

SX-CAN — CCF memory — Read and edit vehicle configuration memory
CCF memory — Read and edit vehicle configuration memory

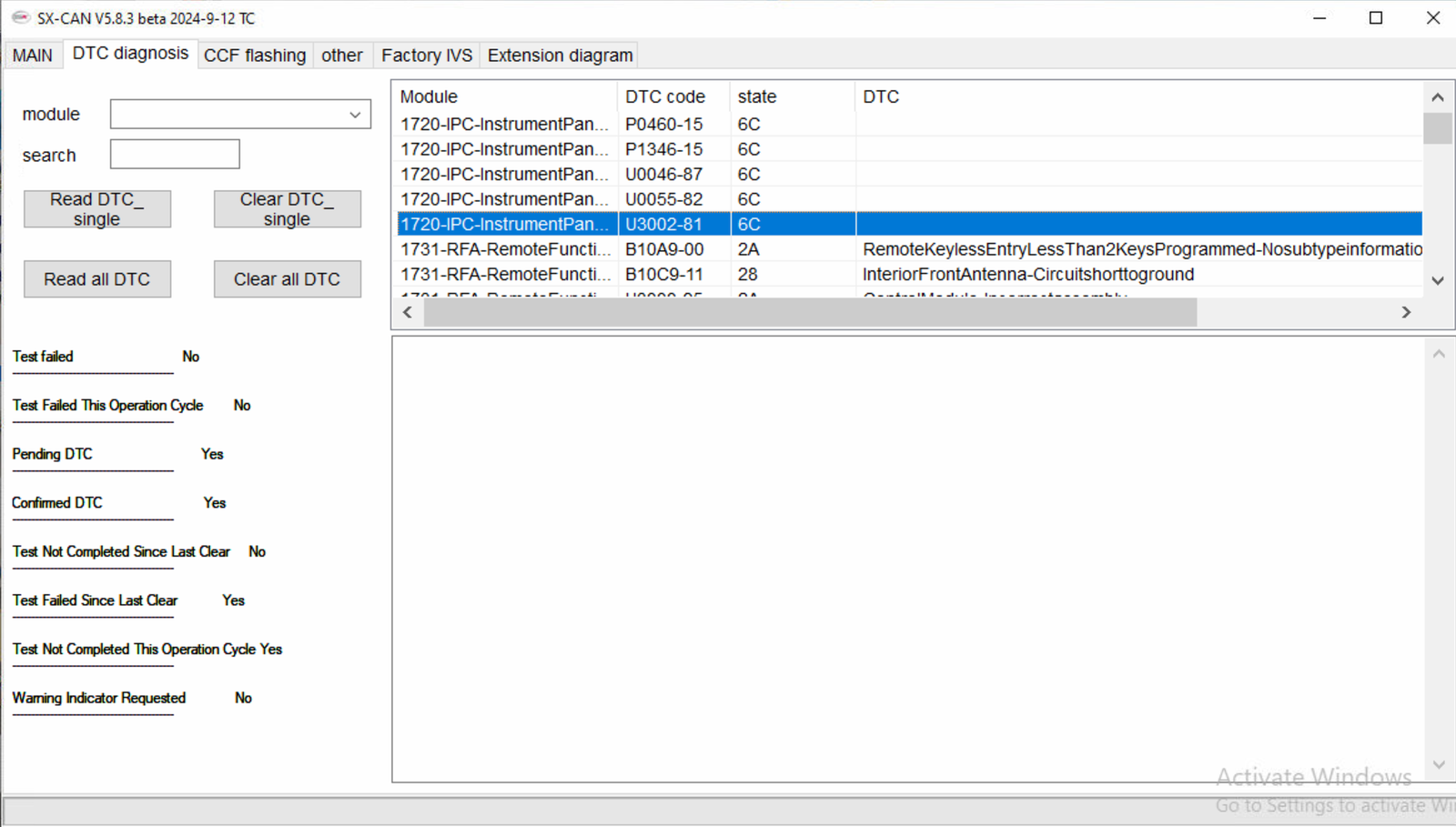

SX-CAN — Diagnosis — Full diagnostic scan and fault code reading
Diagnosis — Full diagnostic scan and fault code reading

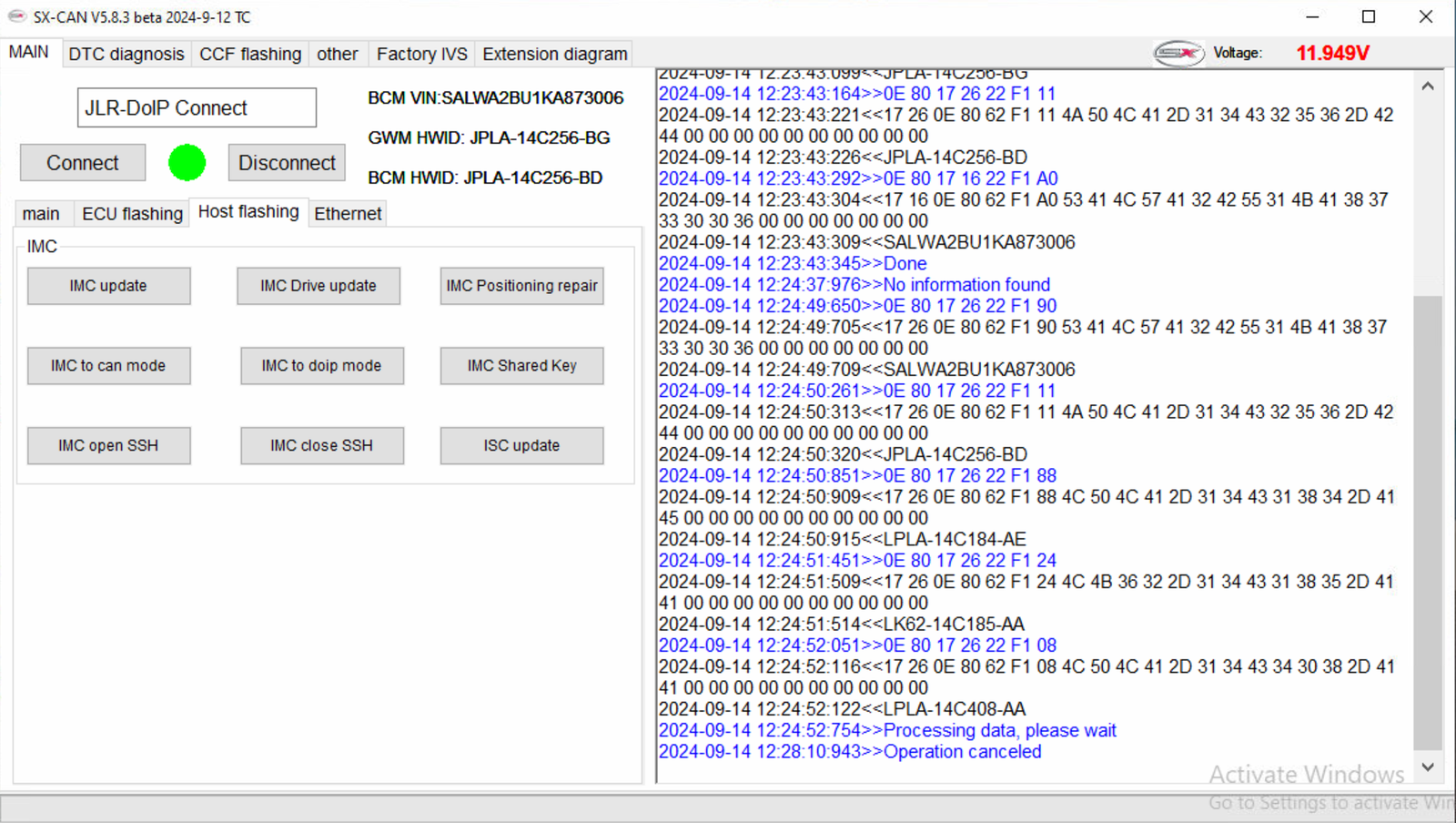

SX-CAN — IMC update — In-vehicle software module update procedure
IMC update — In-vehicle software module update procedure

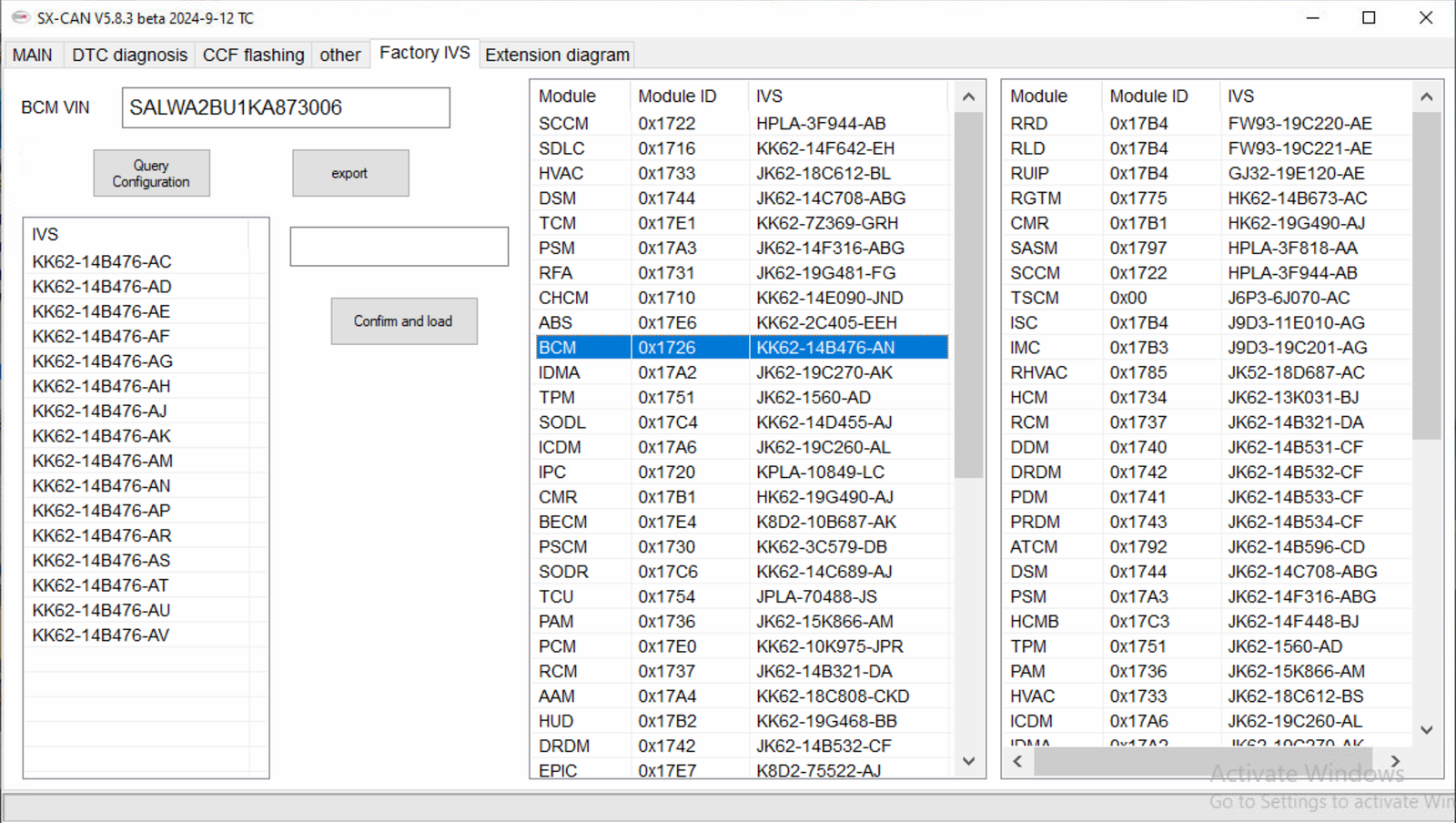

SX-CAN — IVS flashing — In-vehicle software flashing and installation
IVS flashing — In-vehicle software flashing and installation

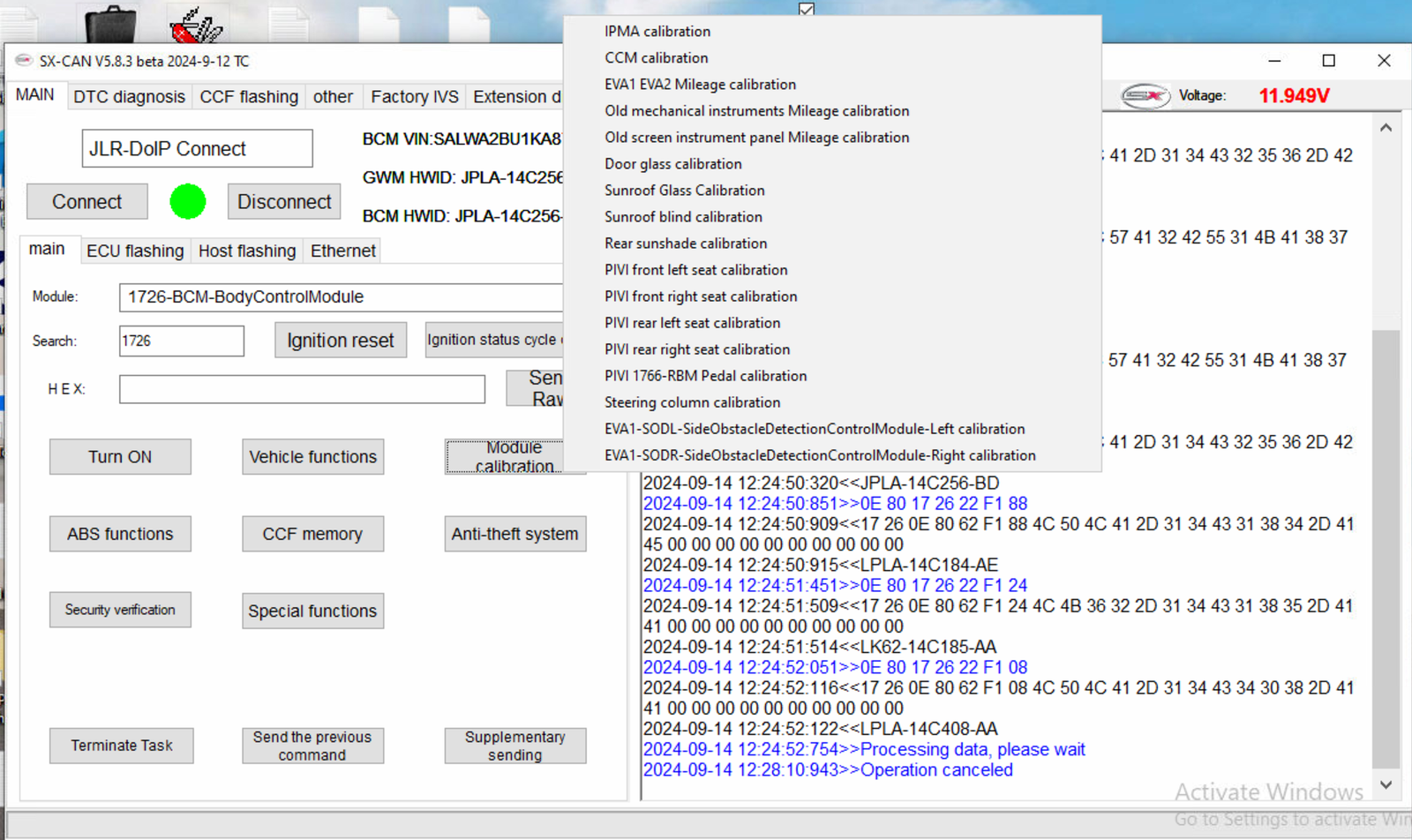

SX-CAN — Module calibration — Sensor and module calibration routines
Module calibration — Sensor and module calibration routines

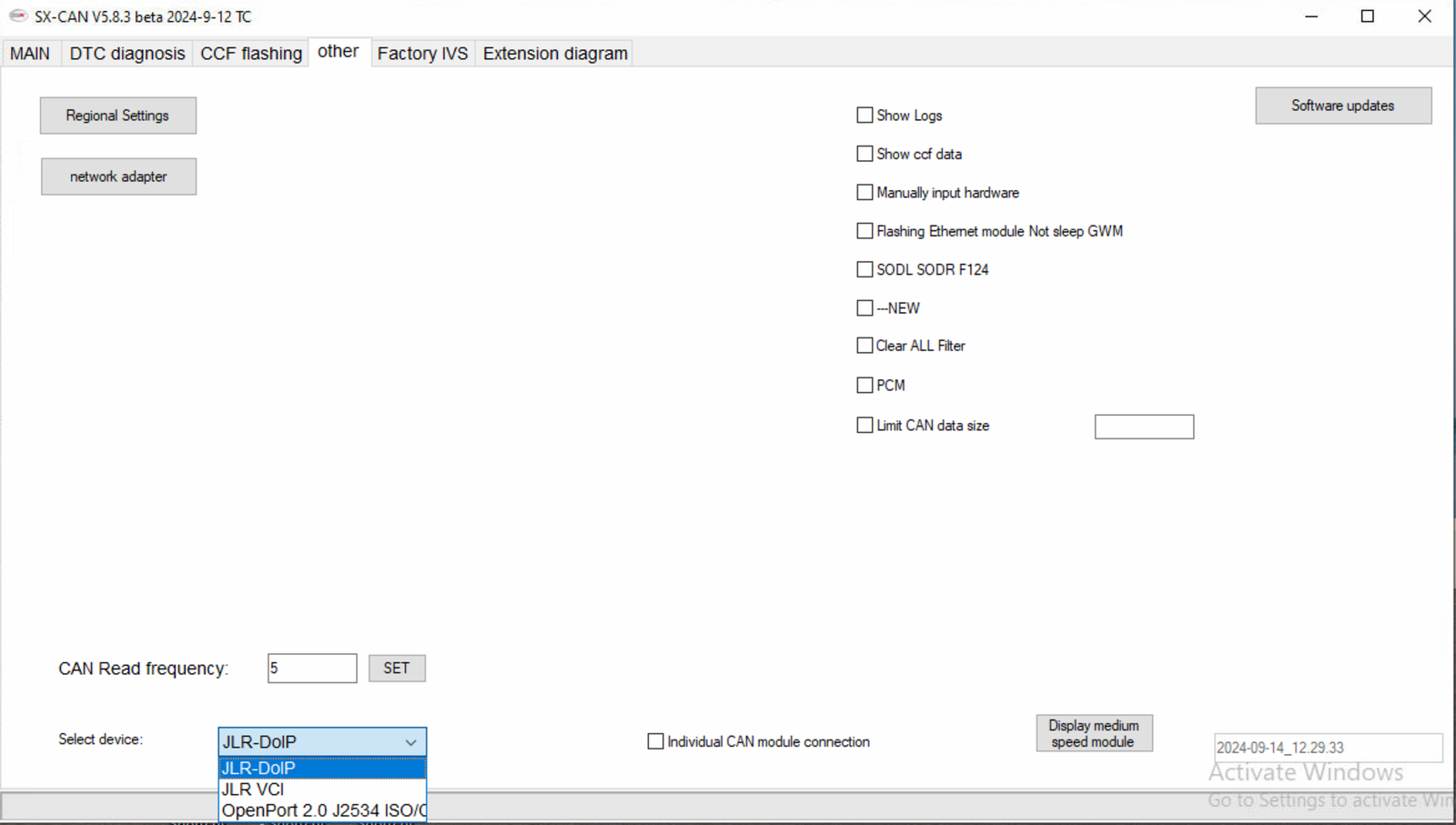

SX-CAN — VCI setup — Vehicle communication interface configuration
VCI setup — Vehicle communication interface configuration

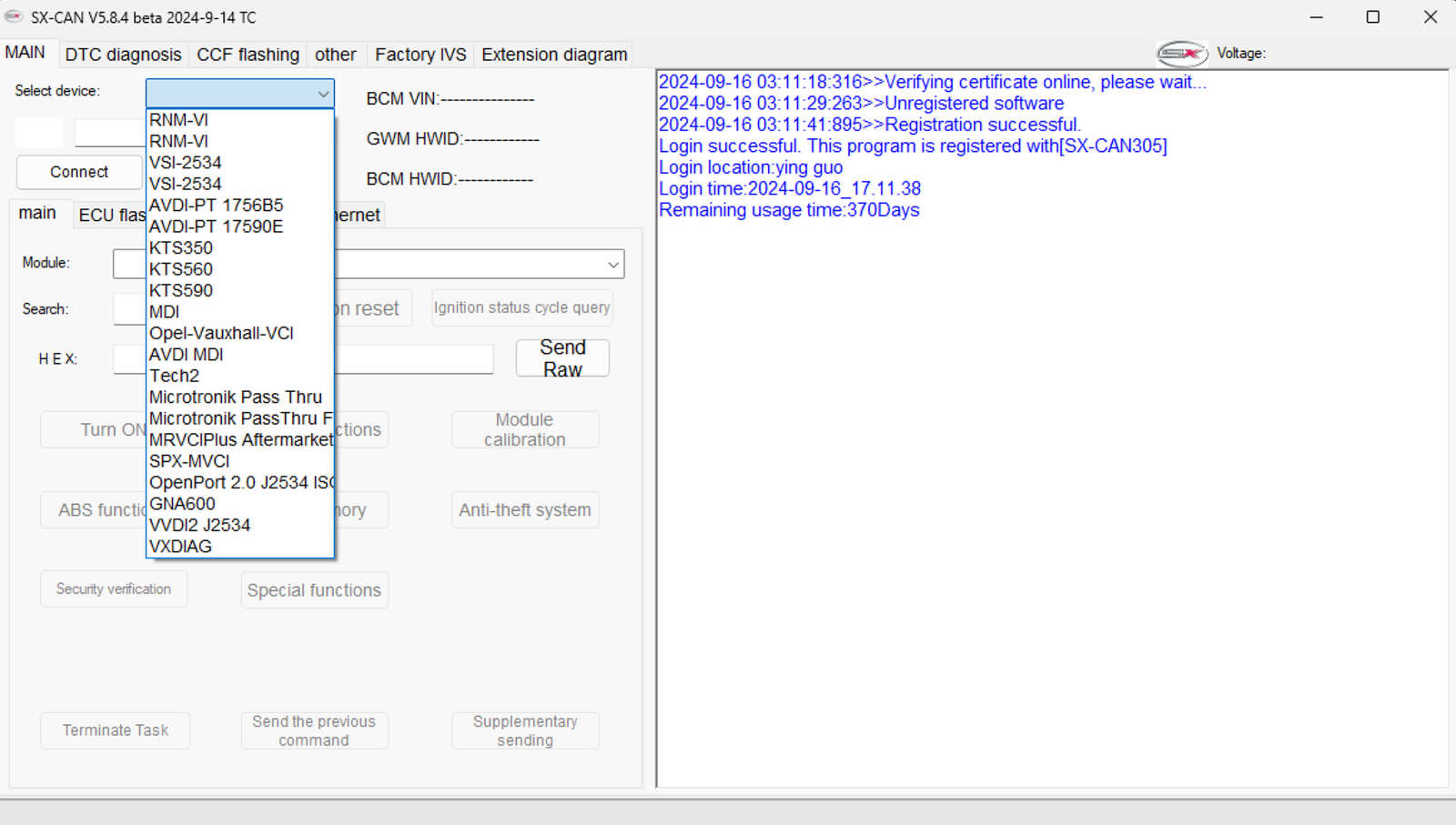

SX-CAN — VCI list — Supported vehicle communication interfaces
VCI list — Supported vehicle communication interfaces

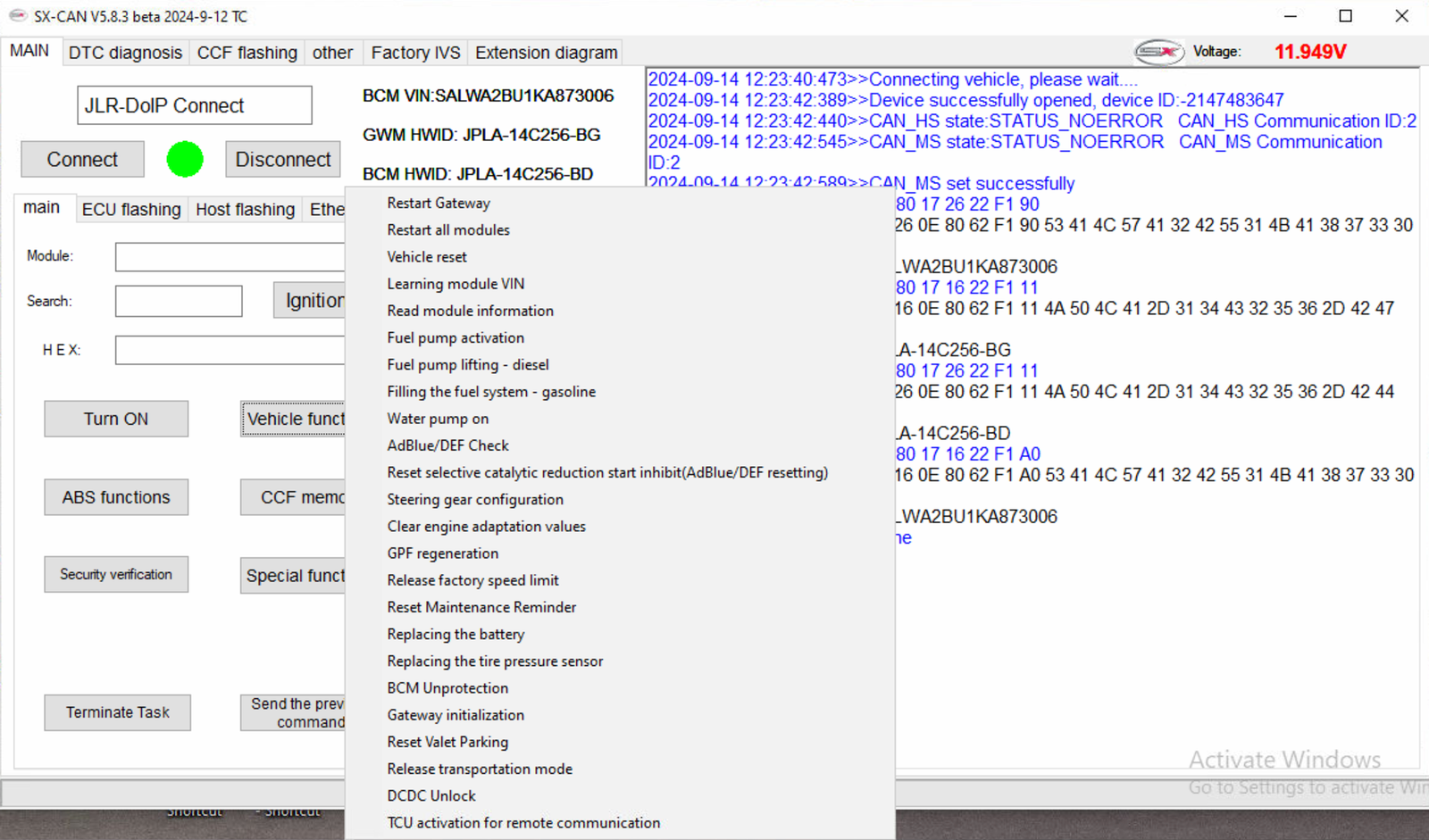

SX-CAN — Vehicle functions — Service and maintenance operations
Vehicle functions — Service and maintenance operations

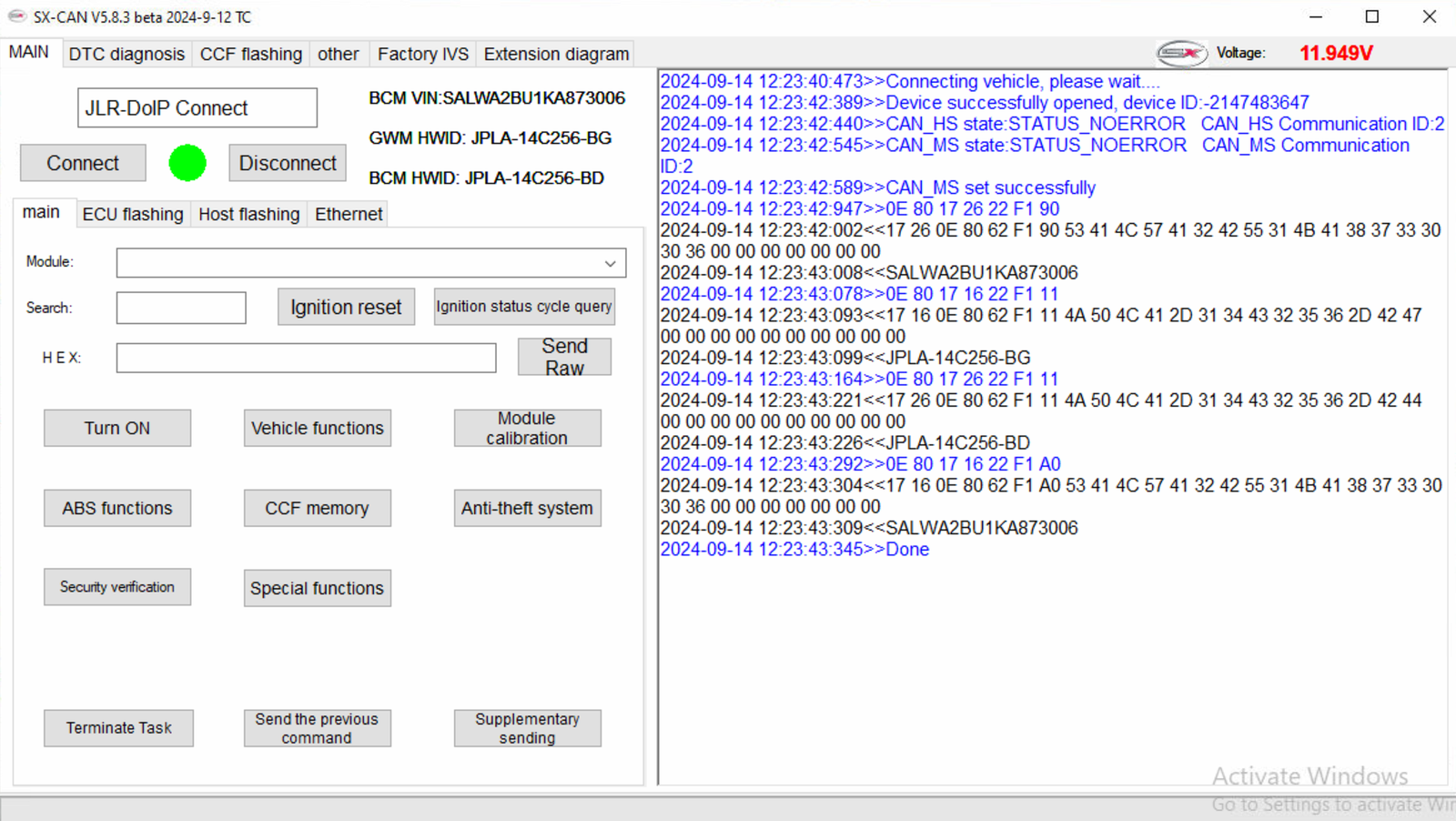

SX-CAN — SX-CAN overview — Complete tool interface and feature map
SX-CAN overview — Complete tool interface and feature map

Supported Vehicles

All JLR vehicles with CAN bus architecture (2005-2026). SX-CAN supports HS-CAN, MS-CAN, and LS-CAN networks used across the JLR range.

Note: SX-CAN is an advanced engineering tool used by our technicians only. It requires deep knowledge of JLR CAN protocols and vehicle systems.
