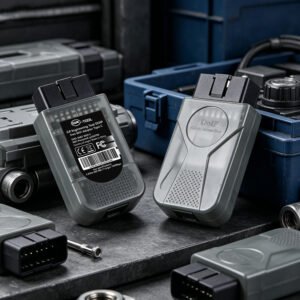

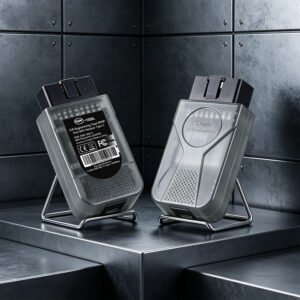

JLR Enet WiFi Adapter Type‑C
JLR Enet WiFi Adapter Type‑C is a workshop‑grade compact wireless DoIP diagnostic interface built exclusively for ISO 13400‑2 compliant Jaguar Land Rover DoIP‑platform vehicles. This hardware creates a local wireless access‑point from the vehicle OBD‑II port, removing restrictive physical cables between vehicle bay and Windows workshop PC. Equipped with modern reversible USB‑C port for auxiliary power supply and in‑field firmware updates, it delivers reliable wireless communication for diagnostic scanning, DTC clearing, live‑data viewing, CCF editing and basic module configuration. Fully interoperable with SX‑TOOL software suite, Pathfinder and TOPIx Cloud, this adapter suits fixed service bays and mobile technicians working MY2017‑2026 D7A, D7U, D8 and MLA JLR architectures.
Technical Overview
The Enet‑WiFi unit functions as a transparent wireless ethernet bridge, converting vehicle‑side DoIP ethernet traffic to dual‑band 2.4 GHz / 5 GHz WiFi signal. Primary power draws from vehicle OBD‑II supply, with secondary USB‑C power‑in option used under low‑voltage vehicle battery conditions. The hardware supports Access‑Point and Client‑mode network configuration, letting workshop laptops connect wirelessly without long ethernet cables cluttering service bays. Built‑in thermal protection protects internal electronics during extended diagnostic sessions. Firmware can be upgraded over USB‑C port to add protocol refinements and maintain compatibility with newly‑released JLR gateway and control‑module variants. While convenient for scans and CCF edits, high‑risk long‑duration ECU flash operations should use wired connection to eliminate WiFi signal‑dropout risks which can brick vehicle modules.
Core Hardware Technical Features
- Full ISO 13400‑2 DoIP protocol compliance for factory‑fitted JLR 2017‑2026 DoIP gateway modules
- Dual‑band 2.4 GHz / 5 GHz WiFi, configurable AP‑mode / Client‑mode, practical workshop wireless range up to 15 metres
- Reversible USB‑C port for auxiliary external power supply and field‑firmware upgrades for protocol improvements
- Multi‑colour LED status indicators showing power, OBD link and WiFi connection for fast bay‑side troubleshooting
- Integrated thermal over‑temperature protection circuit for heavy‑duty everyday workshop environments
- Plug‑and‑play network compatibility for SX‑TOOL suite, Pathfinder and TOPIx Cloud DoIP diagnostic and coding workflows
Hardware & Vehicle Compatibility
Vehicle coverage includes MY2017‑2026 DoIP‑based Jaguar Land Rover models: Range Rover, Range Rover Sport, Defender, Discovery, Velar, Evoque and complete Jaguar passenger‑car range. This adapter is DoIP‑only; legacy pre‑2017 CAN‑bus‑only JLR vehicles need separate J2534 pass‑through hardware. Host PC requirement: Windows 10 / Windows 11 64‑bit operating system with functional WiFi. This hardware supplies only physical wireless communication channel; valid software licences must be purchased separately for coding, flashing or key‑programming tasks. For critical ECU flash‑write work, monitor vehicle battery voltage closely and switch over to wired Enet connection to remove wireless signal‑loss hazards.
What Is Included In This Kit
- JLR Enet WiFi Adapter Type‑C wireless DoIP OBD‑II diagnostic unit
- USB‑C to USB‑A adapter for compatibility with older workshop laptops lacking native USB‑C ports
- Network configuration guide, firmware‑update instructions and workshop programming best‑practice documentation
Technical Disclaimer: JLR Enet WiFi Adapter Type‑C is professional‑grade diagnostic hardware intended for trained automotive technicians. Wireless connection is recommended for diagnostics and CCF editing; wired connection is strongly preferred for high‑risk ECU‑flashing procedures. Hardware does not include any diagnostic or programming‑software licences. Post‑sales support covers hardware connectivity and network‑setup guidance only and does not replace official JLR OEM service training.
