Traffic Sign Recognition and Driver Drowsy Monitor (TSR + DDM)

Technical Overview

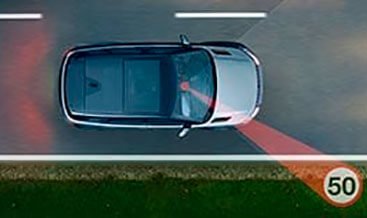

TSR utilises the forward‑facing stereo camera to capture road‑sign data, cross‑referencing with navigation GPS data for improved accuracy, feeding speed‑limit information to the instrument‑cluster and head‑up‑display when fitted. DDM evaluates steering‑wheel activity, brake‑and‑accelerator pedal inputs to identify drowsy‑driving patterns and generates multi‑stage break‑reminder alerts. Both functions are governed by linked ADAS‑domain CCF parameters stored within the camera‑control module and BCM gateway. This coding workflow reads original factory CCF, enables TSR and DDM feature flags, executes cross‑module integrity validation and writes modified dataset back over OBD‑II. Post‑write, controlled ADAS‑module resets plus full vehicle sleep‑wake cycle are required for menu items and cluster‑display outputs to activate. This is purely software‑based modification; physical forward‑facing camera hardware must already be fitted. Full roll‑back is achievable restoring the backed‑up original CCF file.

Core Technical Activation Capabilities

• ADAS‑domain multi‑block CCF modification to unlock combined Traffic Sign Recognition (TSR) and Driver Drowsy Monitor (DDM) for camera‑equipped JLR vehicles
• Enables instrument‑cluster / HUD sign‑display for TSR and multi‑stage visual‑audible driver‑fatigue warnings for DDM
• Pre‑write cross‑module CCF integrity validation preventing incompatible ADAS‑domain parameter combinations before committing changes to camera‑control modules
• Complete CCF backup‑restore workflow preserving original factory configuration before applying ADAS‑related configuration changes
• ADAS diagnostic routines: read camera‑module DTC faults, verify pre‑activation and post‑activation TSR‑DDM feature‑flag‑status
• Session‑log generation capturing vehicle VIN, timestamp and modified ADAS‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisite: vehicle must be factory‑fitted with functional forward‑facing stereo‑camera hardware mounted behind interior rear‑view mirror. TSR+DDM cannot be activated via coding alone if camera hardware is missing or faulty. Supported MY2015‑2025 Range Rover, Range Rover Sport, Defender, Discovery, Velar, Evoque and full Jaguar passenger‑car ranges. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for ADAS‑domain‑configuration‑writes. Note: TSR and DDM are driver‑assist aids and cannot replace attentive driving.

What This Activation Service Includes

• TSR + DDM combined ADAS multi‑block CCF‑coding‑activation workflow for camera‑hardware‑equipped compatible JLR vehicles
• ADAS‑domain CCF backup‑restore tool‑set for TSR‑DDM‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑function‑testing‑guidance‑including‑vehicle‑sleep‑cycle‑instructions
