2022 Pathfinder System Panasonic FZ-G1 i5 6300 with JLR DOIP VCI WF

2022 Pathfinder System Panasonic FZ‑G1 i5‑6300 with JLR DoIP VCI‑WF Bundle Overview

This all‑in‑one 2022 Pathfinder diagnostic system delivers a fully pre‑deployed workshop‑ready hardware‑software kit built around the rugged Panasonic Toughpad FZ‑G1 i5‑6300U tablet and wireless JLR DoIP VCI‑WF communication interface. Designed for independent repair garages, mobile JLR technicians and retrofit specialists, this complete system removes complicated manual software installation, driver conflicts and hardware compatibility testing. Every unit is bench‑tested before dispatch to guarantee stable communication between tablet operating system, Pathfinder 2022 offline software stack and DoIP VCI‑WF hardware.

The Panasonic FZ‑G1 is MIL‑STD‑810G and IP65 rated fully‑rugged tablet built for harsh garage environments; resistant to dust, liquid spills, vibration and drops up to 1.8 metres. Powered by Intel Core i5‑6300U 6‑th‑gen CPU with Windows 10 Pro 64‑bit, it provides reliable performance running heavy JLR diagnostic databases, live data streaming and large CCF/VBF file processing. The integrated JLR DoIP VCI‑WF supports both wired Ethernet and wireless Wi‑Fi DoIP communication, working for post‑2017 DoIP platforms via Pathfinder and backward‑compatible for older Multi‑CAN vehicles through legacy SDD software.

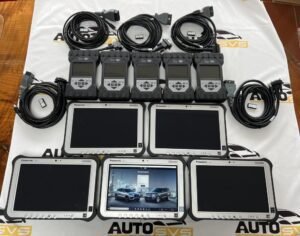

What Is Included Within This Complete Diagnostic Bundle

• Panasonic Toughpad FZ‑G1 Rugged Tablet: Intel i5‑6300U CPU, 8GB RAM, SSD storage, 10.1‑inch high‑bright sunlight‑readable touch‑screen, Windows 10 Pro 64‑bit

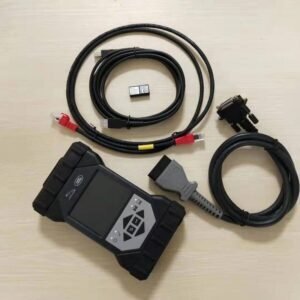

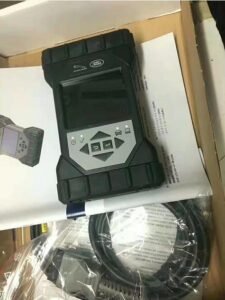

• JLR DoIP VCI‑WF wireless Vehicle Communication Interface unit with power and connection accessories
• Pre‑installed 2022 Pathfinder offline diagnostic environment plus legacy SDD for Multi‑CAN vehicle coverage
• Pre‑configured VCI‑WF drivers, network profiles, firewall rules optimised for DoIP / Multi‑CAN vehicle communication
• Bench validation test completed: software launch, VCI detection, connection simulation verification
• Printable technical operation guide covering VCI pairing, vehicle connection, diagnostic workflow steps

Supported JLR Vehicle Architectures & Technical Capabilities

This system covers both Multi‑CAN and DoIP Jaguar Land Rover chassis. Using Pathfinder 2022 you can service MY2017‑2022 DoIP vehicles including L663 Defender, L560 Velar, L462 Discovery and latest Range Rover models. Legacy SDD handles MY2006‑2018 Multi‑CAN platforms such as L405 Range Rover, L494 Range Rover Sport, XE, XF, F‑Pace. Technicians can execute dealer‑level offline tasks: read and clear DTC fault codes, bi‑directional actuator tests, live sensor data logging, ECU identification, CCF read‑backup and configuration analysis. Note that online ECU flashing still requires valid JLR TOPIx subscription; offline functions do not replace official TOPIx cloud access.

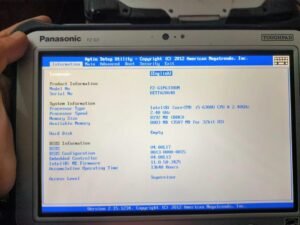

Key Panasonic FZ‑G1 Hardware Specifications

• CPU: Intel Core i5‑6300U (2.4GHz base / up to 3.0 GHz turbo)
• Display:10.1‑inch WUXGA 1920×1200 high‑bright glove‑capable multi‑touch screen
• Rugged rating: IP65 dust‑waterproof, MIL‑STD‑810G shock‑drop certified for workshop usage
• Ports: Built‑in RJ45 Ethernet, USB3.0, Wi‑Fi / Bluetooth for pairing with DoIP VCI‑WF wireless interface

Order & Important Technical Notes

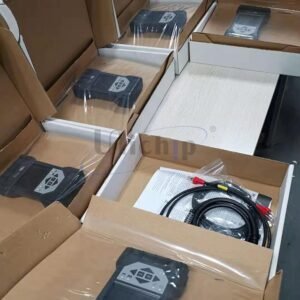

After purchase the complete pre‑tested kit ships ready‑to‑work. Upon receipt you simply pair the DoIP VCI‑WF to tablet, connect to vehicle and start diagnostics. This bundle includes tablet hardware and VCI‑WF plus pre‑loaded offline diagnostic software. CCF Tools licensing is sold separately. System is intended for professional qualified automotive technicians only. Software offline datasets do not contain live TOPIx online programming functions.
