The JLR DOIP VCI WF Bosch Genuine

Technical Overview

Built around industrial‑grade internal processing hardware, this genuine Bosch VCI‑WF supports multi‑protocol vehicle communication including DoIP 100Mbps automotive Ethernet, CAN‑FD, high‑speed CAN and K‑Line legacy protocols, conforming to SAE J2534‑2 pass‑thru specification. Connection options include USB‑wired and integrated WiFi wireless access‑point modes for flexible service‑bay deployment. On‑board firmware is field‑upgradeable to maintain alignment with evolving JLR gateway security requirements for late‑model MLA platform vehicles. Unlike aftermarket DoIP adapters, genuine Bosch timing and protocol handling is optimised for long‑duration flash cycles, reducing communication‑abort risks during high‑risk module‑write procedures. Unit draws primary power from vehicle OBD‑II port with internal circuit protection against automotive voltage transients and ground‑loop conditions.

Core Genuine Bosch VCI‑WF Technical Features

• Multi‑protocol support: ISO 13400‑2 DoIP, CAN‑FD, CAN 500/250 kbps, K‑Line, compliant with SAE J2534‑1 / J2534‑2 pass‑thru standard
• Dual connectivity: high‑speed USB‑wired and built‑in WiFi wireless mode for flexible workshop mobility
• Manufacturer‑optimised timing handling for JLR module flashing, CCF write and security‑access sequences
• Firmware upgradeable hardware to add support for newly released vehicle modules and updated security‑gateway requirements
• Status LED indicators for power, OBD link, USB and WiFi connection for fast bay‑side troubleshooting
• Native compatibility with SDD, Pathfinder, TOPIx Cloud plus SX‑TOOL JET‑Master, JET‑Pro and SX‑CAN engineering software suites

Hardware & Vehicle Compatibility

Vehicle coverage spans MY2006‑2026 Jaguar Land Rover models, supporting legacy CAN‑bus architectures through latest MLA‑platform DoIP vehicles including new‑generation Range Rover, Defender and Jaguar EV variants. Host workstation requirement: Windows 10 / Windows 11 64‑bit operating system. Wireless WiFi mode is recommended for diagnostic scanning; critical ECU‑flash operations are best performed over USB‑wired connection to mitigate wireless signal‑loss risk. This hardware provides communication channel only; valid software licences are required for coding, flashing and immobiliser workflows. A stabilised external 12 V power supply remains mandatory during all module‑programming work to avoid bricking ECUs or gateway modules.

What This Genuine VCI Kit Includes

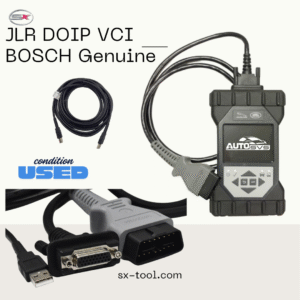

• Genuine Bosch The JLR DOIP VCI‑WF main wireless vehicle communication interface unit
• High‑quality USB data‑power cable for wired high‑speed operation and firmware updates
• Original driver files, installation manual and workshop configuration reference documentation
