CCF‑PRO CCF Editor for Jaguar Land Rover 2006‑2024

Technical Overview

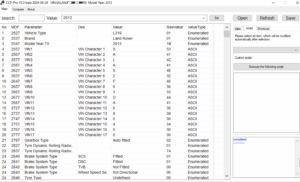

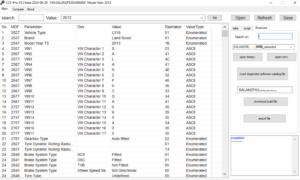

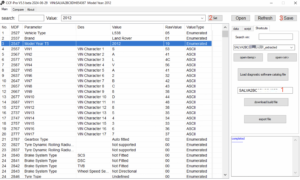

The CCF acts as the vehicle’s master specification dataset stored inside BCM, GWM and relevant gateway modules, defining fitted hardware, feature‑enable flags, regional market settings and inter‑module communication matrices across the JLR vehicle network. CCF‑PRO parses raw binary CCF dumps and displays parameters with human‑readable labels, enabling controlled, traceable configuration adjustments. It supports two working modes: offline file‑editing using previously‑saved dumps, plus live read‑write via compatible OBD‑hardware; SDD‑compatible J2534 cables for pre‑2017 CAN vehicles and ENET / DoIP VCI adapters for MY2017‑2024 DoIP vehicles. Built‑in integrity validation checks minimise risk of writing invalid configurations that cause network‑communication faults.

Core CCF‑PRO Technical Functions

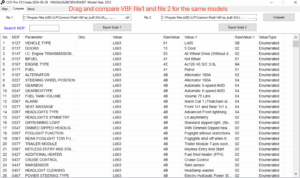

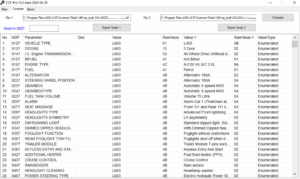

• Full CCF read, backup, restore and side‑by‑side file comparison, highlighting parameter differences between original and modified configurations
• OEM hidden‑feature activation: adaptive cruise, blind‑spot monitoring, 360‑surround camera, terrain‑response, Video‑in‑Motion and infotainment regional‑conversion coding
• Retrofit coding for second‑hand or aftermarket module installation, matching hardware‑option codes against the vehicle VIN profile
• Variant and market‑spec adjustment, repairing configuration mismatches after module replacement or used‑ECU fitment
• Keyword search‑and‑filter function for fast navigation through large parameter lists, export change‑logs for internal workshop audit trails
• Pre‑write CCF integrity validation to block incompatible parameter combinations before committing data to vehicle modules.

Vehicle Architecture & Hardware Compatibility

CCF‑PRO supports legacy CAN‑networks 2006‑2016 and modern DoIP platforms 2017‑2024 across major JLR model lines. Workstation requirement: Windows 10 / Windows 11 64‑bit OS. Compatible hardware includes JLR SDD pass‑through cables, ENET‑cables and Enet‑WiFi adapters. Late‑2023‑2024 vehicles with enhanced secure‑gateway modules may still need supplementary online authorisation for certain protected write‑tasks. Always maintain stable regulated 12 V battery supply during CCF‑write cycles to prevent partial‑write corruption.

What the Licence Includes

• CCF‑PRO CCF Editor software licence covering JLR MY2006‑2024 vehicle variants
• Parameter‑definition database with descriptive labels for factory JLR option‑codes
• Technical documentation: backup‑restore workflows, pre‑write validation best‑practices and compatibility reference sheets
• Software maintenance updates adding new CCF‑parameters and newly‑released‑variant vehicle‑support.
