Climate timer

Technical Overview

The Climate‑timer function is managed by the HVA climate‑control‑module in coordination with BCM body‑gateway, infotainment IMC and powertrain modules. Once a departure schedule and target temperature are saved in the infotainment, the HVA calculates the required activation time and triggers pre‑conditioning according to ambient‑temperature conditions. For combustion‑engine vehicles this may utilise park‑heat auxiliary heater hardware; PHEV units leverage high‑voltage battery energy when plugged‑in. Feature‑enablement requires coordinated CCF edits within HVAC‑domain blocks alongside infotainment‑HMI flags to expose climate‑timer scheduling menus. This coding workflow reads and backs‑up original factory CCF dataset, enables climate‑timer fitment‑flags, executes multi‑module integrity validation and writes modified configuration back via OBD‑II connection. Post‑write, controlled HVA and infotainment‑module resets plus full‑vehicle sleep‑wake cycle are mandatory for timer‑menu entries and scheduling‑logic to initialise. This is purely software‑based activation; all required HVAC and heating‑related physical hardware must already be factory‑installed. Full roll‑back to factory‑spec can be achieved restoring the backed‑up original CCF file.

Core Technical Activation Capabilities

• Multi‑block HVAC‑domain CCF‑parameter modification unlocking Climate‑timer scheduled pre‑conditioning for HVA‑hardware‑qualified JLR vehicles

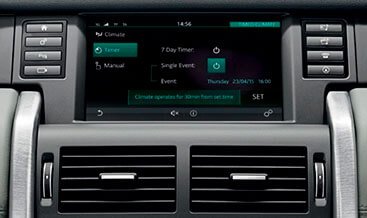

• Enables infotainment‑climate‑timer scheduling‑menu, multiple departure‑time profiles, target‑cabin‑temperature setup and timer‑status feedback within HMI
• Pre‑write cross‑module CCF integrity validation preventing incompatible HVA‑BCM‑IMC parameter combinations before committing changes to vehicle ECUs
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying climate‑timer‑related HVAC‑domain‑changes
• HVAC diagnostic routines: read HVA‑module DTC faults, verify pre‑activation and post‑activation climate‑timer feature‑flag‑status
• Session‑log generation capturing vehicle VIN, timestamp and modified HVAC‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisites: vehicle must have factory‑fitted functional HVA climate‑control‑module; auxiliary park‑heat hardware is required for effective pre‑heating on combustion‑engine variants. Climate‑timer cannot be enabled‑by‑coding‑alone if required HVAC or auxiliary‑heating hardware is missing or faulty. Supported MY2015‑2025 Range‑Rover, Range‑Rover‑Sport, Defender, Discovery, Velar, Evoque and full Jaguar passenger‑car ranges including MHEV and PHEV derivatives. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for HVAC‑domain‑configuration‑writes. Note: Climate‑timer is a cabin‑comfort convenience‑feature subject to local market‑regulations.

What This Activation Service Includes

• Climate‑timer multi‑block HVA‑HVAC‑domain CCF‑coding‑activation workflow for hardware‑qualified‑compatible‑JLR‑vehicles
• HVAC‑domain CCF backup‑restore tool‑set for climate‑timer‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑timer‑function‑testing‑guidance‑including‑vehicle‑sleep‑cycle‑instructions
