Lane Departure Warning (LDW)

Technical Overview

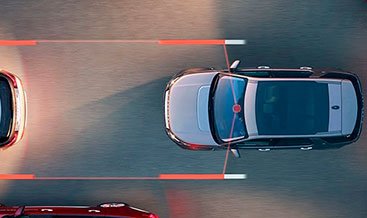

The forward‑facing stereo‑camera captures lane‑marker imagery and transmits processed data across vehicle CAN‑networks to the ADAS camera‑controller. When the vehicle drifts toward lane boundaries without corresponding turn‑signal activation, LDW triggers visual warnings in the instrument cluster and haptic vibration feedback on the steering‑wheel rim. Unlike Lane Keep Assist (LKA), LDW delivers warning notifications only and will not generate corrective steering torque. Feature‑enablement requires coordinated CCF changes inside ADAS‑domain blocks alongside instrument‑cluster and infotainment‑HMI flags to expose LDW on‑off toggle and sensitivity‑setting menus. This coding workflow reads and backs‑up original factory CCF dataset, enables LDW fitment‑flags, executes cross‑module integrity validation and writes modified configuration via OBD‑II connection. Post‑write, controlled ADAS‑camera‑controller resets plus full‑vehicle sleep‑wake cycle are required for warnings and menu‑items to activate. This modification is purely software‑based; physical stereo‑camera hardware must already be factory‑installed. Full roll‑back to factory‑spec can be achieved restoring backed‑up original CCF file.

Core Technical Activation Capabilities

• ADAS‑domain multi‑block CCF‑parameter modification unlocking Lane Departure Warning (LDW) for stereo‑camera‑hardware‑equipped JLR vehicles
• Enables instrument‑cluster visual lane‑drift alerts, steering‑wheel haptic vibration warnings and infotainment‑HMI LDW toggle / sensitivity‑adjustment menus
• Pre‑write cross‑module CCF integrity validation preventing incompatible ADAS‑cluster‑infotainment‑parameter combinations before committing changes to vehicle ECUs
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying LDW‑related ADAS‑domain‑changes
• ADAS diagnostic routines: read stereo‑camera‑module DTC faults; verify pre‑activation and post‑activation LDW feature‑flag‑status
• Session‑log generation capturing vehicle VIN, timestamp and modified ADAS‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisite: vehicle must be factory‑fitted with functional forward‑facing stereo‑camera mounted behind interior rear‑view‑mirror. LDW cannot be activated‑by‑coding‑alone if camera hardware is missing, misaligned or faulty. Supported MY2015‑2025 Range‑Rover, Range‑Rover‑Sport, Defender, Discovery, Velar, Evoque and full Jaguar passenger‑car ranges. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for ADAS‑domain‑configuration‑writes. Important note: LDW is purely a driver‑warning‑aid and does not replace attentive driver responsibility for lane‑keeping.

What This Activation Service Includes

• Lane Departure Warning (LDW) multi‑block ADAS‑CCF‑coding‑activation workflow for stereo‑camera‑hardware‑qualified‑compatible‑JLR‑vehicles
• ADAS‑domain CCF backup‑restore tool‑set for LDW‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑LDW‑warning‑function‑testing‑guidance‑including‑vehicle‑sleep‑cycle‑instructions
