Configurable Terrain Response mode

Technical Overview

Standard Terrain Response 2 selects from fixed pre‑calibrated terrain presets. Configurable Terrain Response decouples the linked‑preset logic, granting granular independent adjustment of each chassis‑powertrain parameter. The ATCM all‑terrain‑control‑module communicates setting requests across the vehicle CAN‑network to PCM, TCM, PSCM, SCM and DSC modules, applying the user‑defined mix of calibrations. Feature‑enablement requires coordinated CCF edits within ATCM chassis‑blocks plus infotainment‑HMI flags to render the slider‑configuration menus on‑screen. This coding workflow reads and backs‑up original factory CCF, enables Configurable‑Terrain‑Response feature‑flags, executes cross‑module integrity validation and writes modified configuration back via OBD‑II connection. Post‑write, controlled ATCM and related chassis‑module resets plus full vehicle sleep‑wake cycle are mandatory for custom‑profile menus and parameter‑mixing logic to initialise. This is purely software‑based activation; full Terrain Response 2 physical hardware must already be factory‑installed. Full roll‑back to factory‑spec can be achieved restoring the backed‑up original CCF file.

Core Technical Activation Capabilities

• Multi‑block chassis‑ATCM CCF‑parameter modification unlocking Configurable Terrain Response mode for Terrain‑Response‑2‑hardware‑equipped JLR vehicles

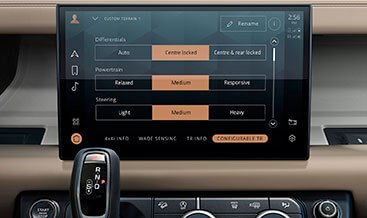

• Enables touch‑screen slider‑based independent tuning for throttle response, transmission shift strategy, steering assistance, adaptive damping and traction‑control intervention thresholds
• Pre‑write cross‑module CCF integrity validation preventing incompatible chassis‑powertrain‑DSC parameter combinations before committing changes to vehicle ECUs
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying Configurable‑Terrain‑Response‑related chassis‑changes
• Chassis‑diagnostic routines: read ATCM, SCM, DSC and PCM DTC faults; verify pre‑activation and post‑activation CTR feature‑flag‑status
• Session‑log generation capturing vehicle VIN, timestamp and modified chassis‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisites: vehicle must have factory‑fitted complete Terrain Response 2 system, functional ATCM module, AWD transfer‑case, adaptive suspension and DSC stability‑control hardware. Configurable Terrain Response cannot be enabled‑by‑coding‑alone if any required off‑road chassis‑components are missing or faulty. Supported MY2017‑2025 Range‑Rover, Range‑Rover‑Sport, Defender and Discovery model‑lines. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for chassis‑domain‑configuration‑writes. Configurable Terrain Response is a driver‑aid; driver remains responsible for terrain‑appropriate vehicle‑setup and safe off‑road operation.

What This Activation Service Includes

• Configurable Terrain Response mode multi‑block ATCM‑chassis CCF‑coding‑activation workflow for hardware‑qualified‑compatible‑JLR‑vehicles
• Chassis‑domain CCF backup‑restore tool‑set for CTR‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑function‑testing‑guidance‑including‑vehicle‑sleep‑cycle‑instructions
