Demo JLR Topix Cloud 1‑Day 2017‑2026

Technical Overview

This 1‑day demo session works via the official TOPIx Cloud browser portal paired with the Diagnostic Device Agent (DDA) client installed on your Windows workshop PC. Communication with the vehicle runs over ISO 13400‑2 DoIP protocol using compatible ENET / DoIP VCI hardware. Once activated, the token enables encrypted cloud‑server handshake to JLR backend repositories, granting temporary access to genuine VBF firmware files, factory service manuals, wiring diagrams and technical service bulletins. The session is time‑bound for 24 consecutive hours starting from activation moment; access expires automatically with no manual de‑activation required. Pre‑2017 legacy CAN‑bus‑only vehicles are not supported by this TOPIx Cloud demo service.

Core Demo Session Technical Functions

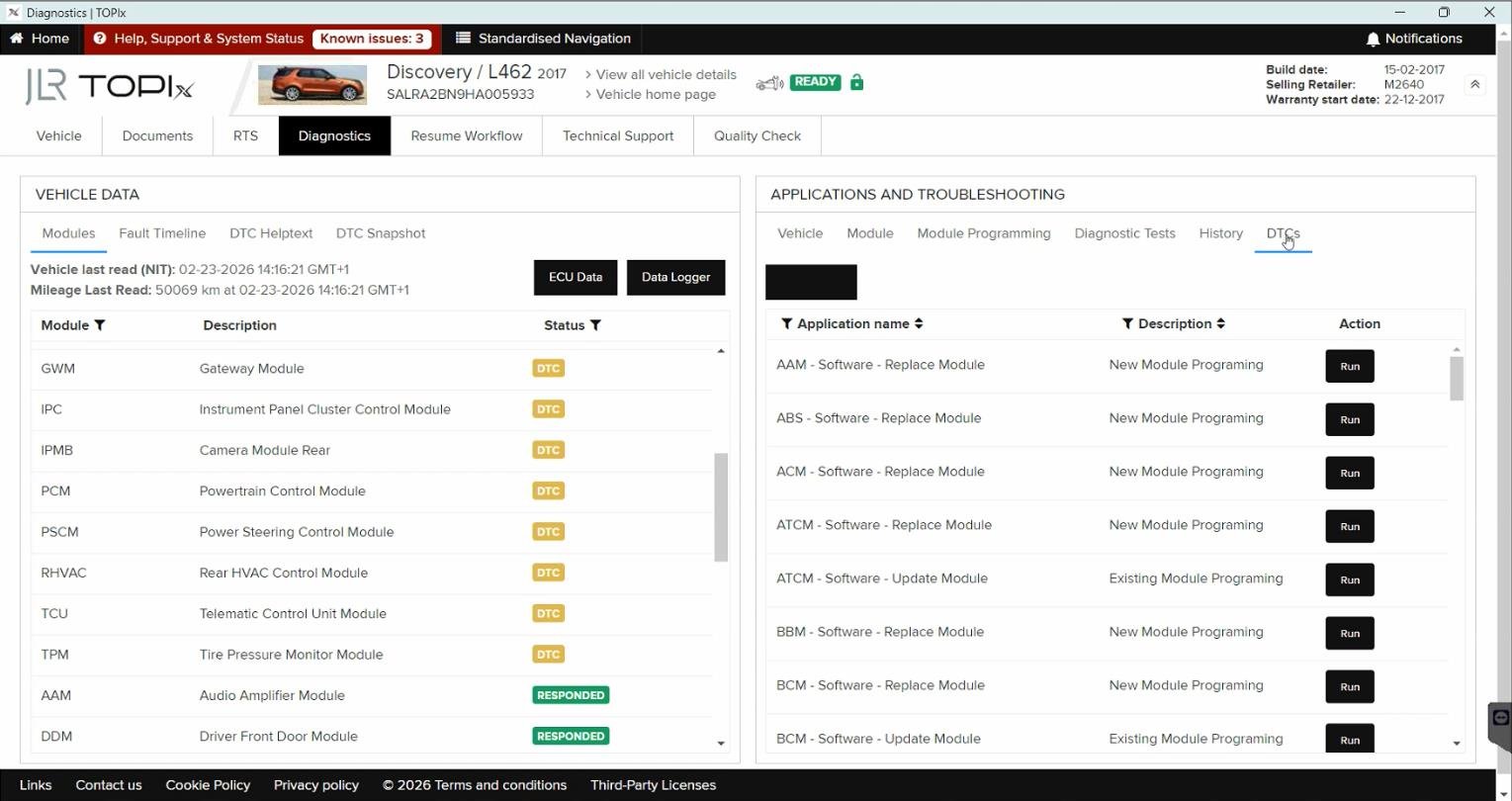

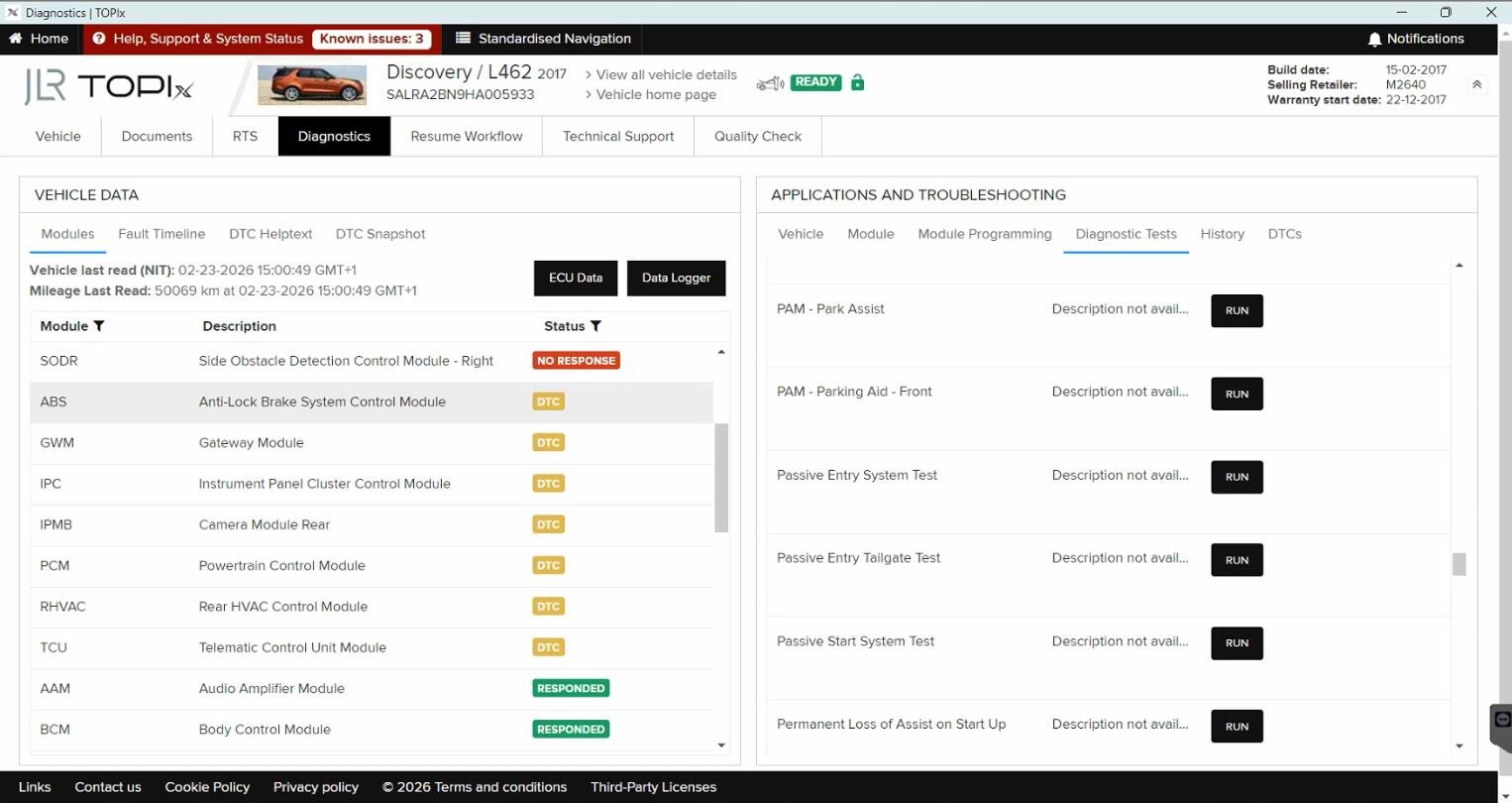

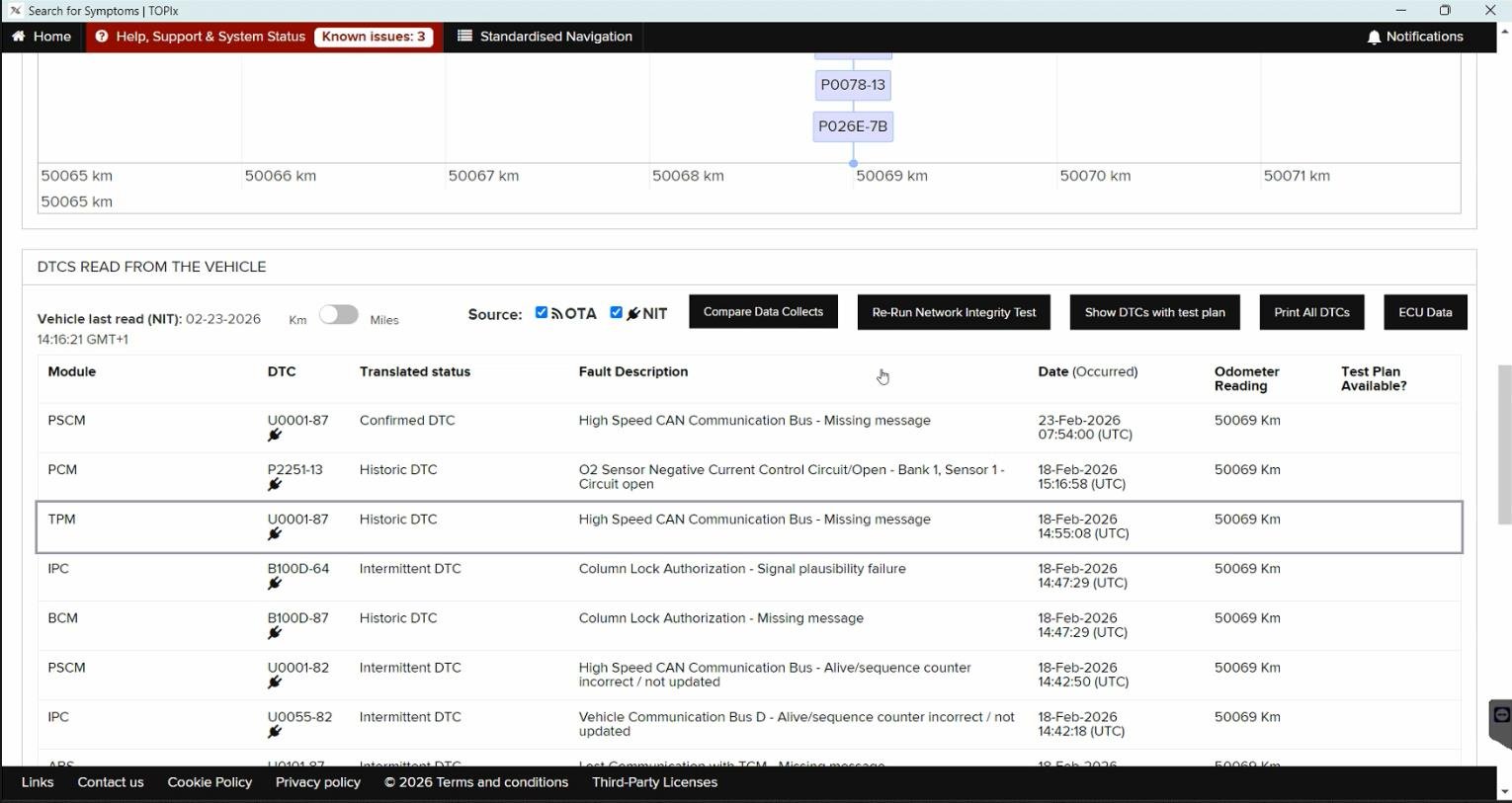

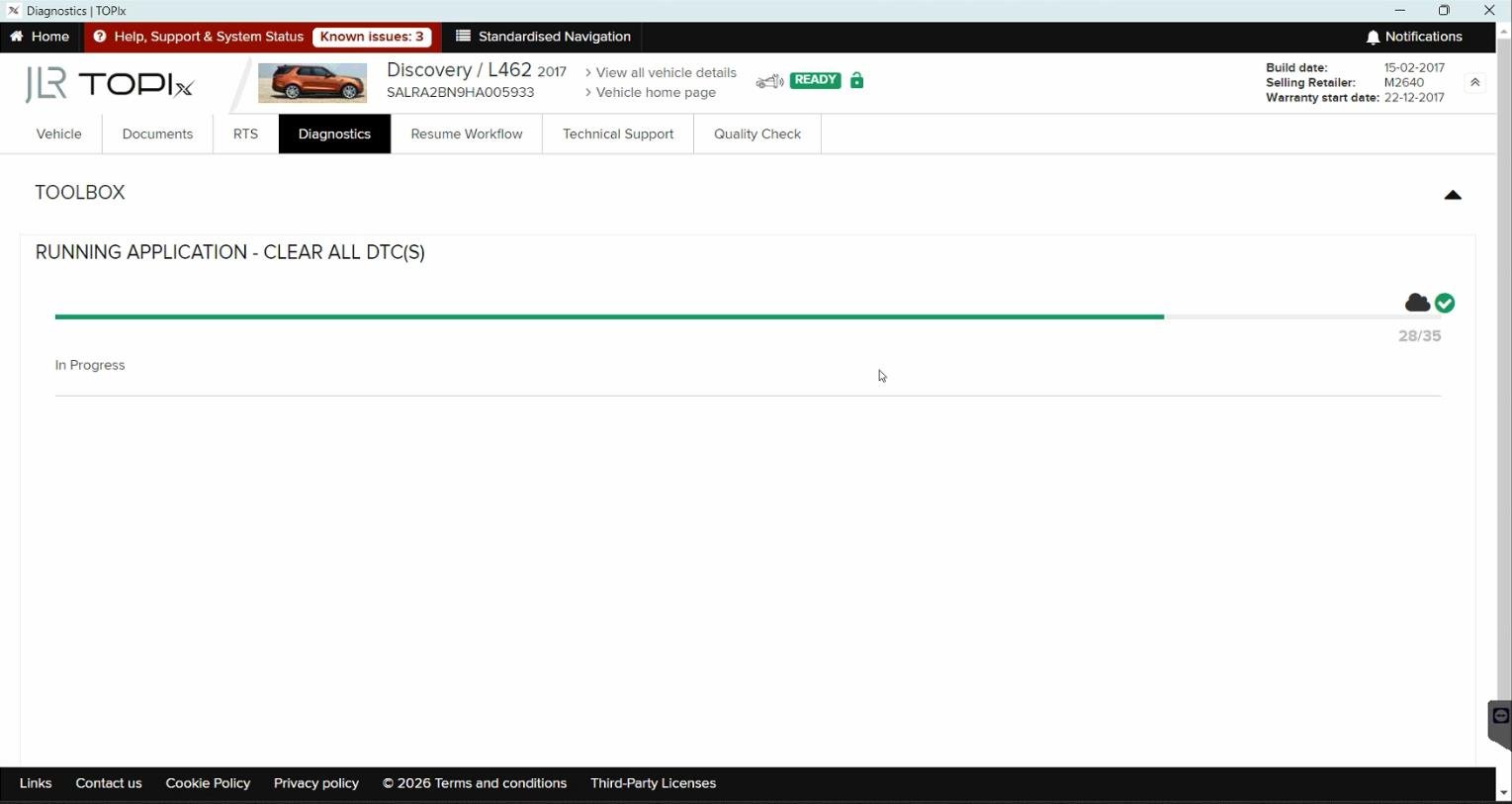

• Full vehicle system scan, manufacturer‑specific DTC read‑clear, freeze‑frame data retrieval and multi‑module live sensor streaming

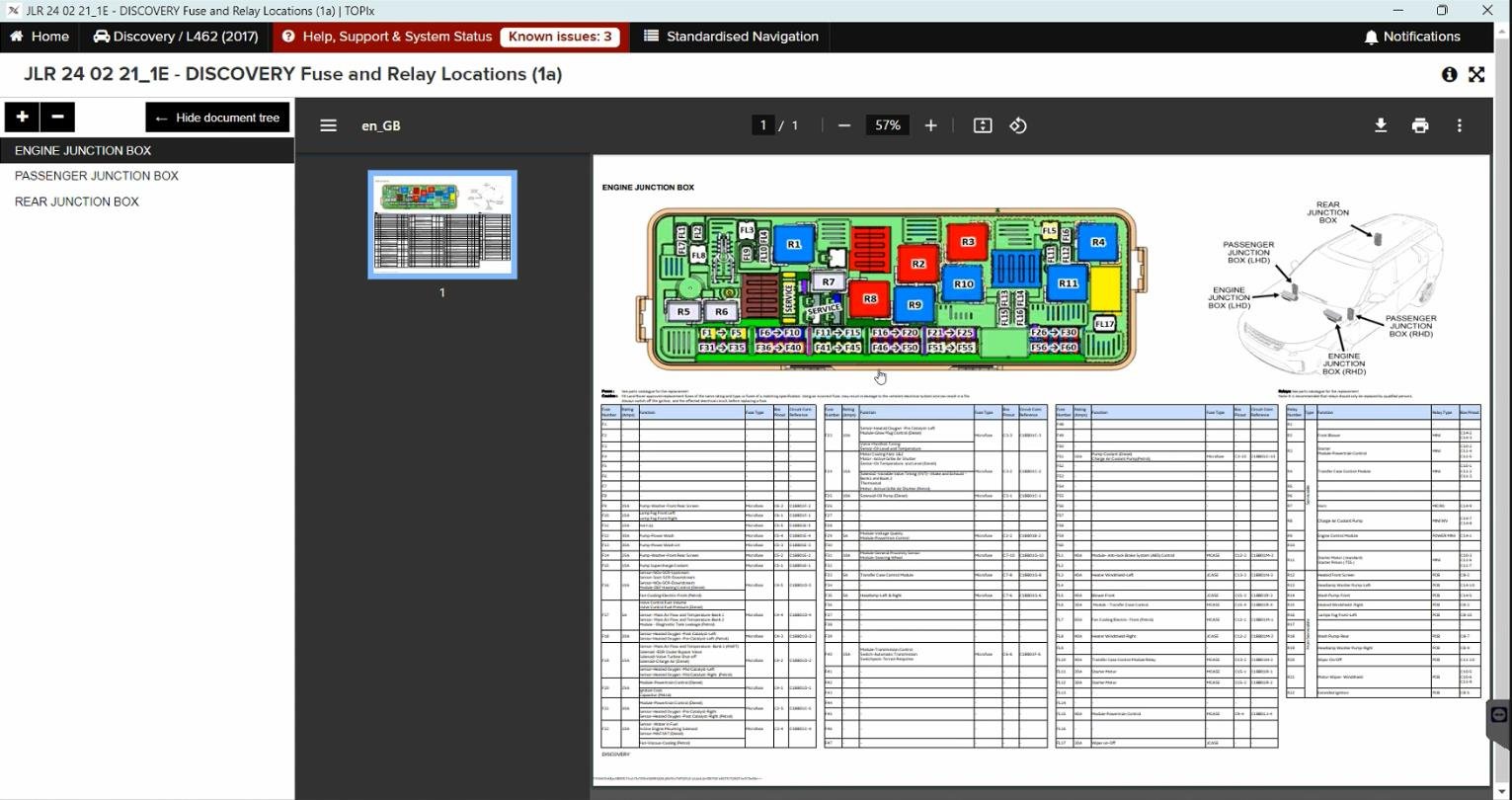

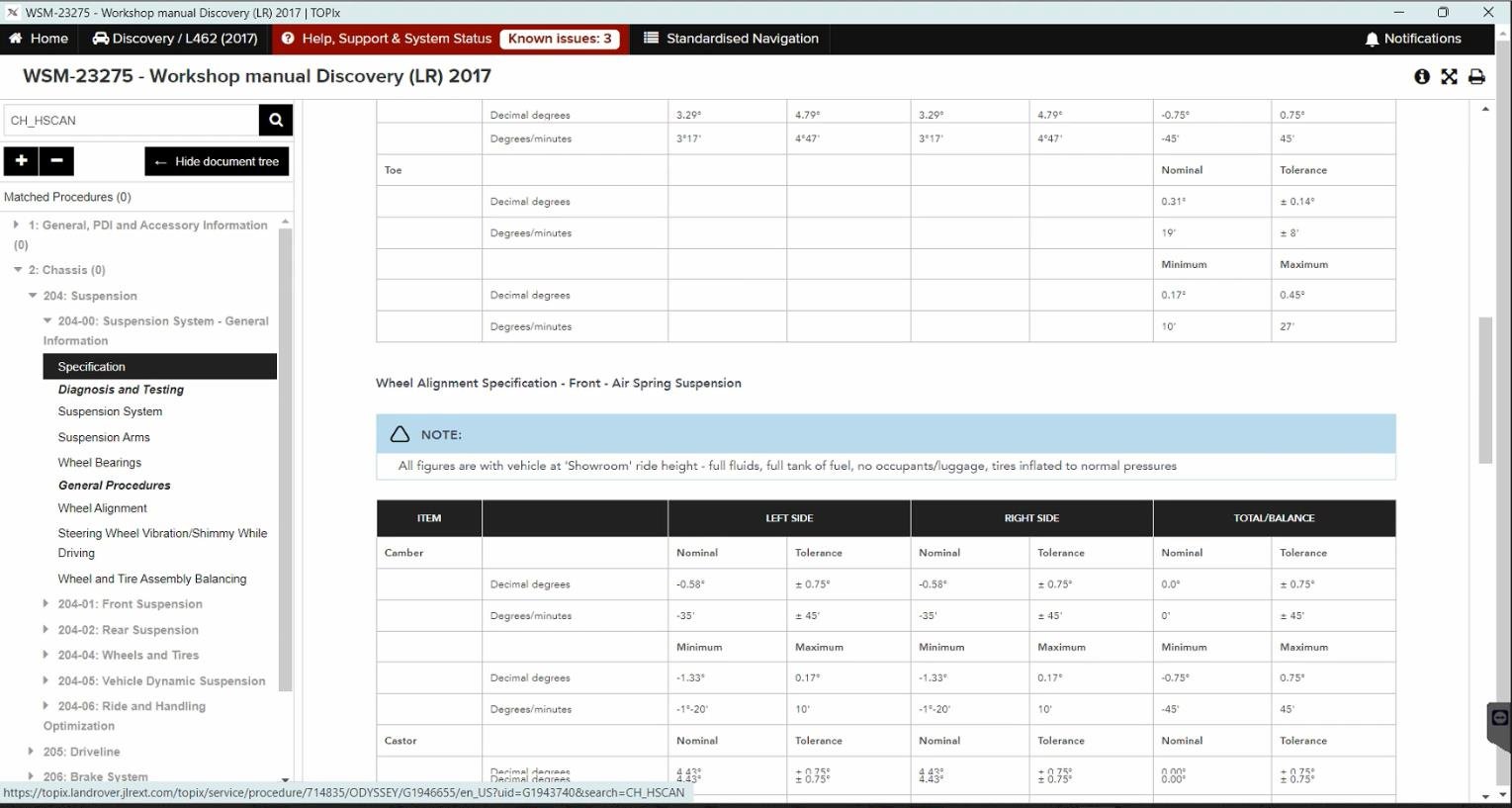

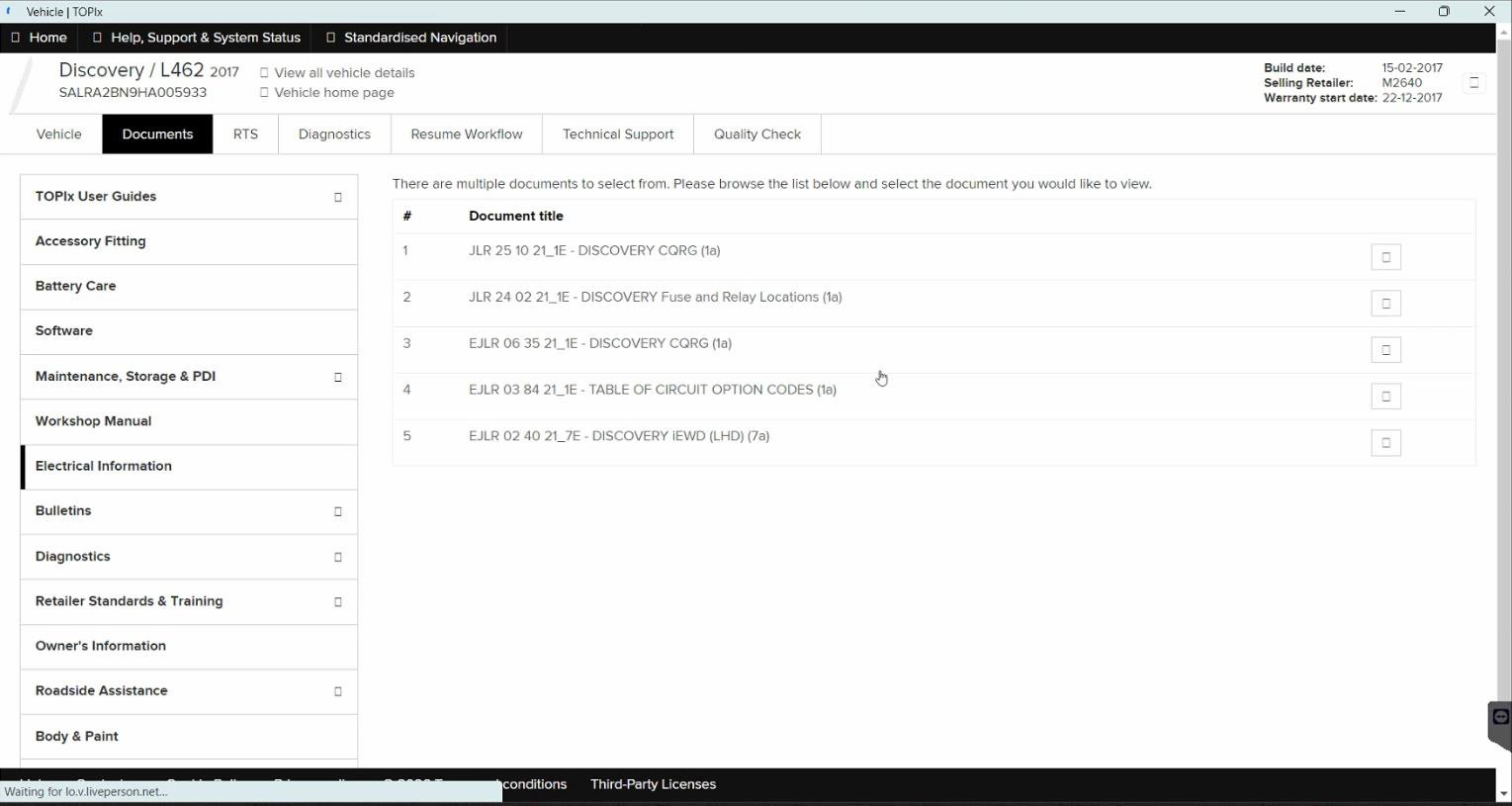

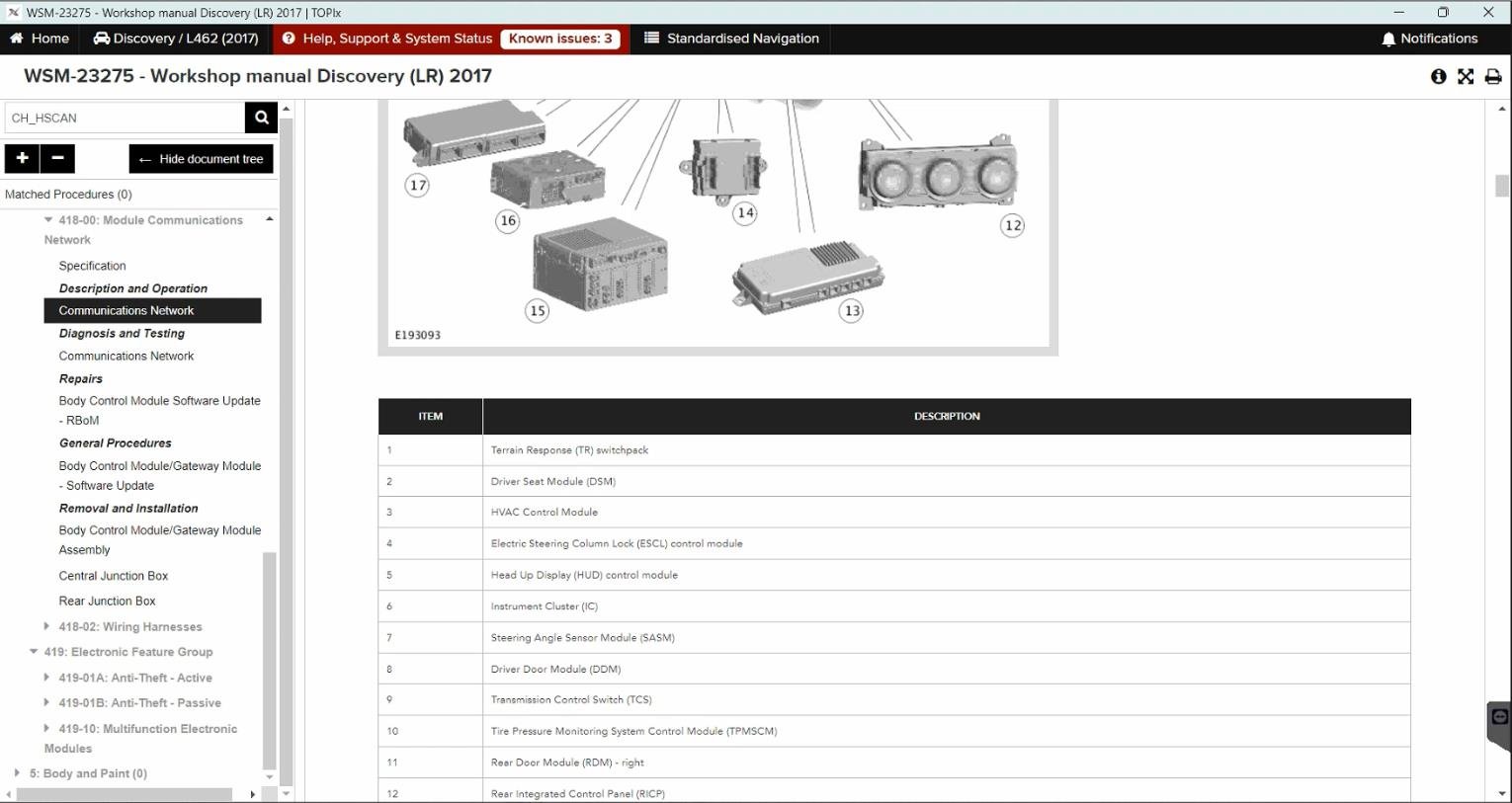

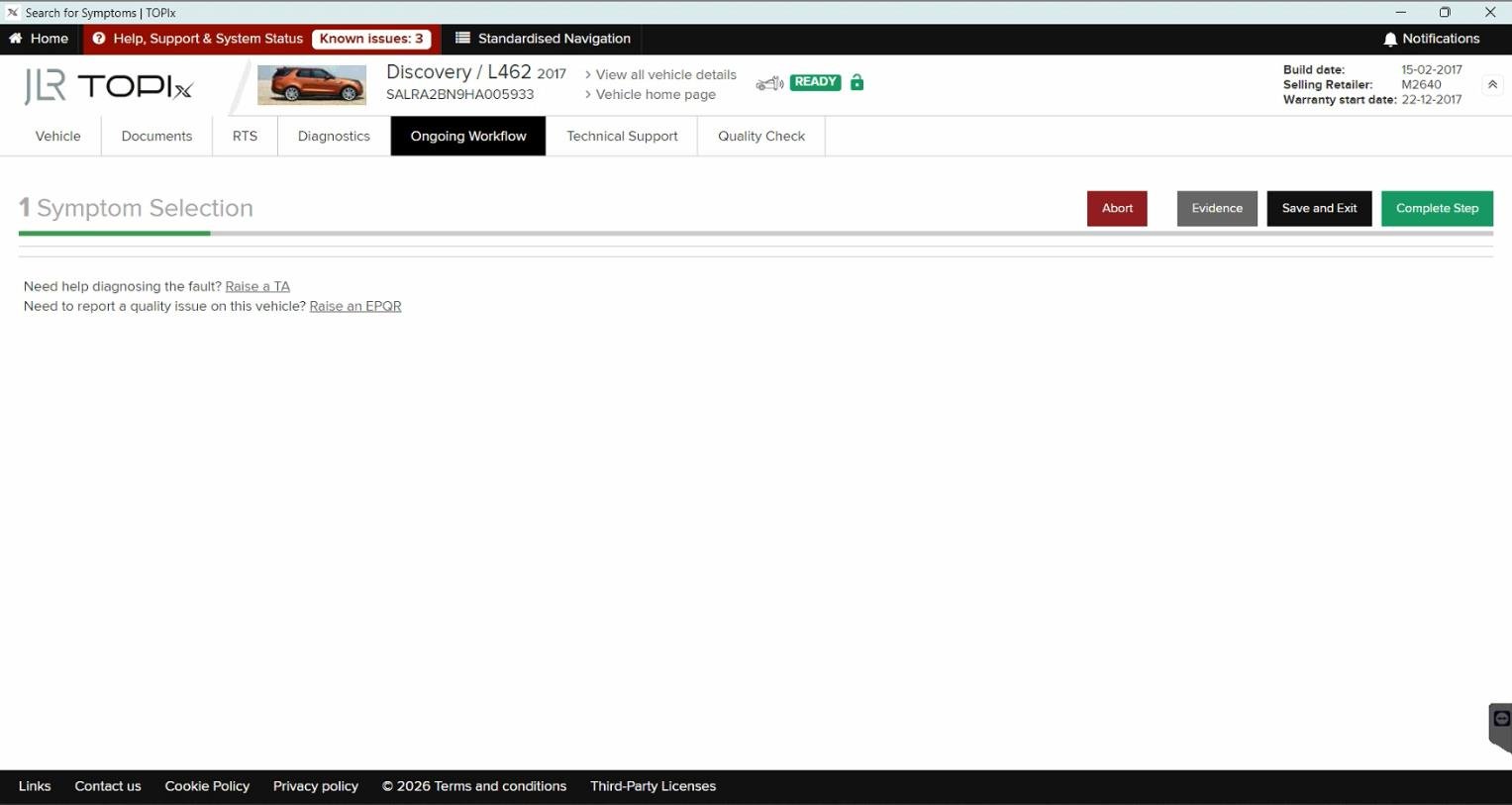

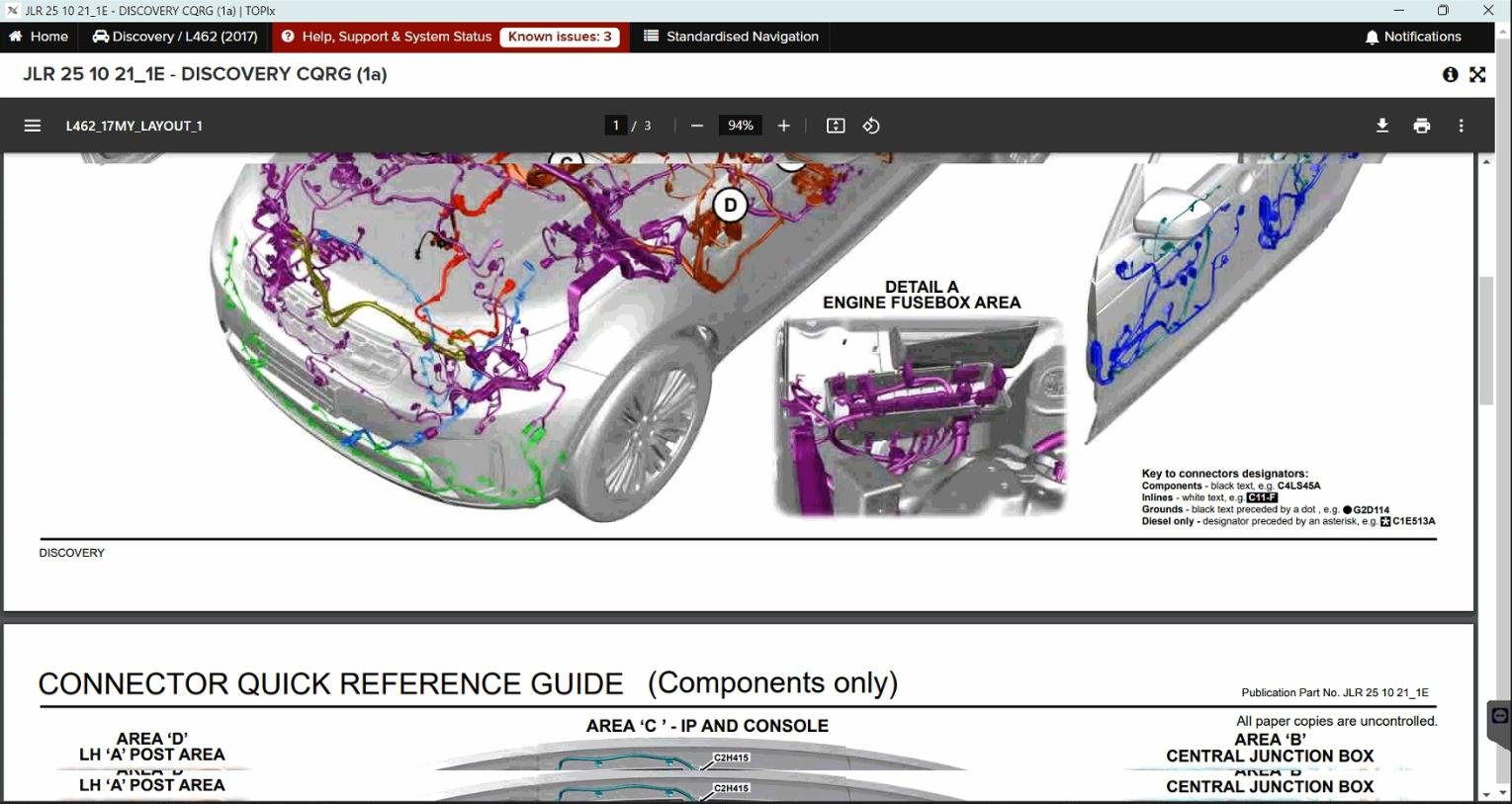

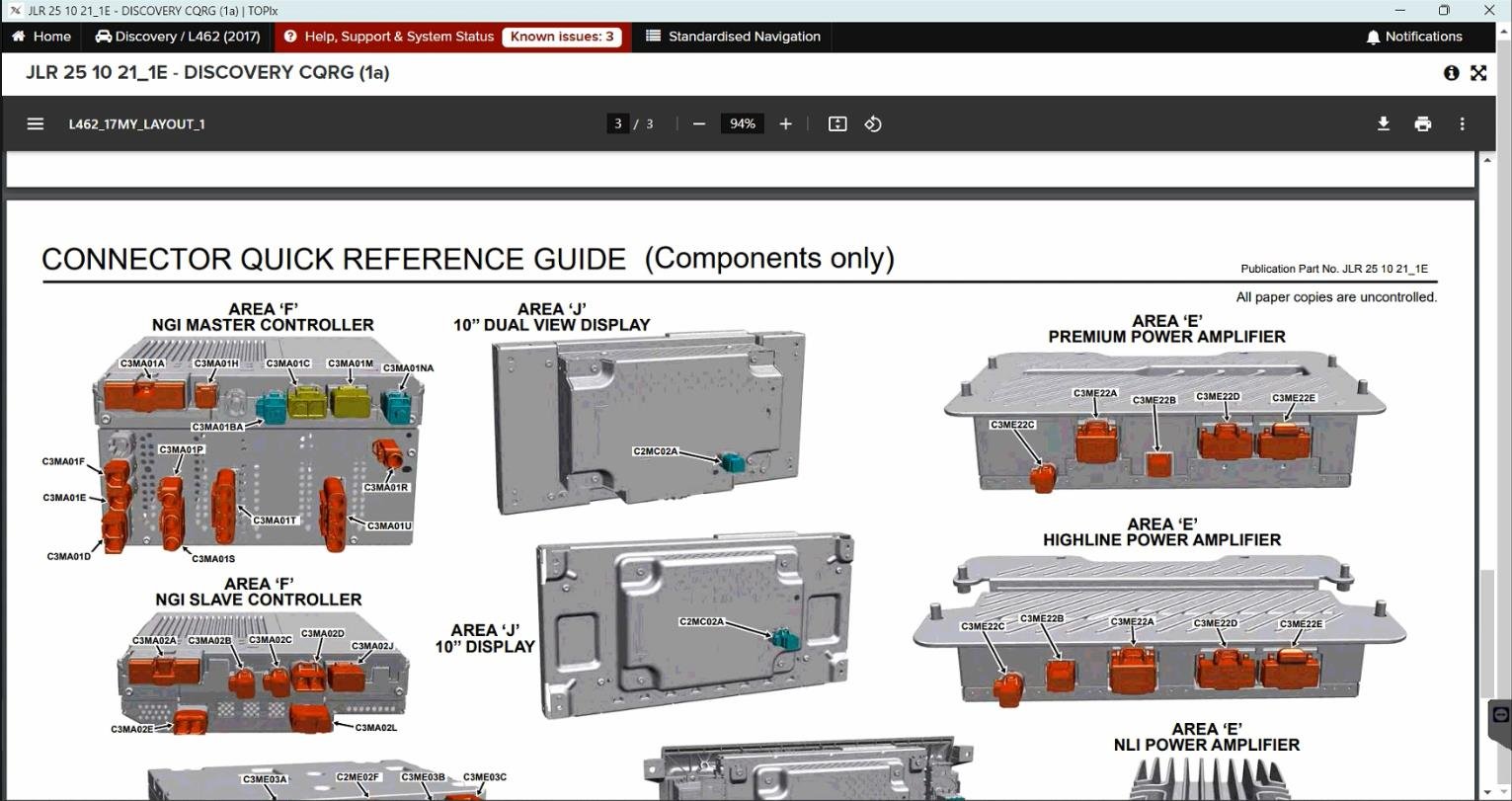

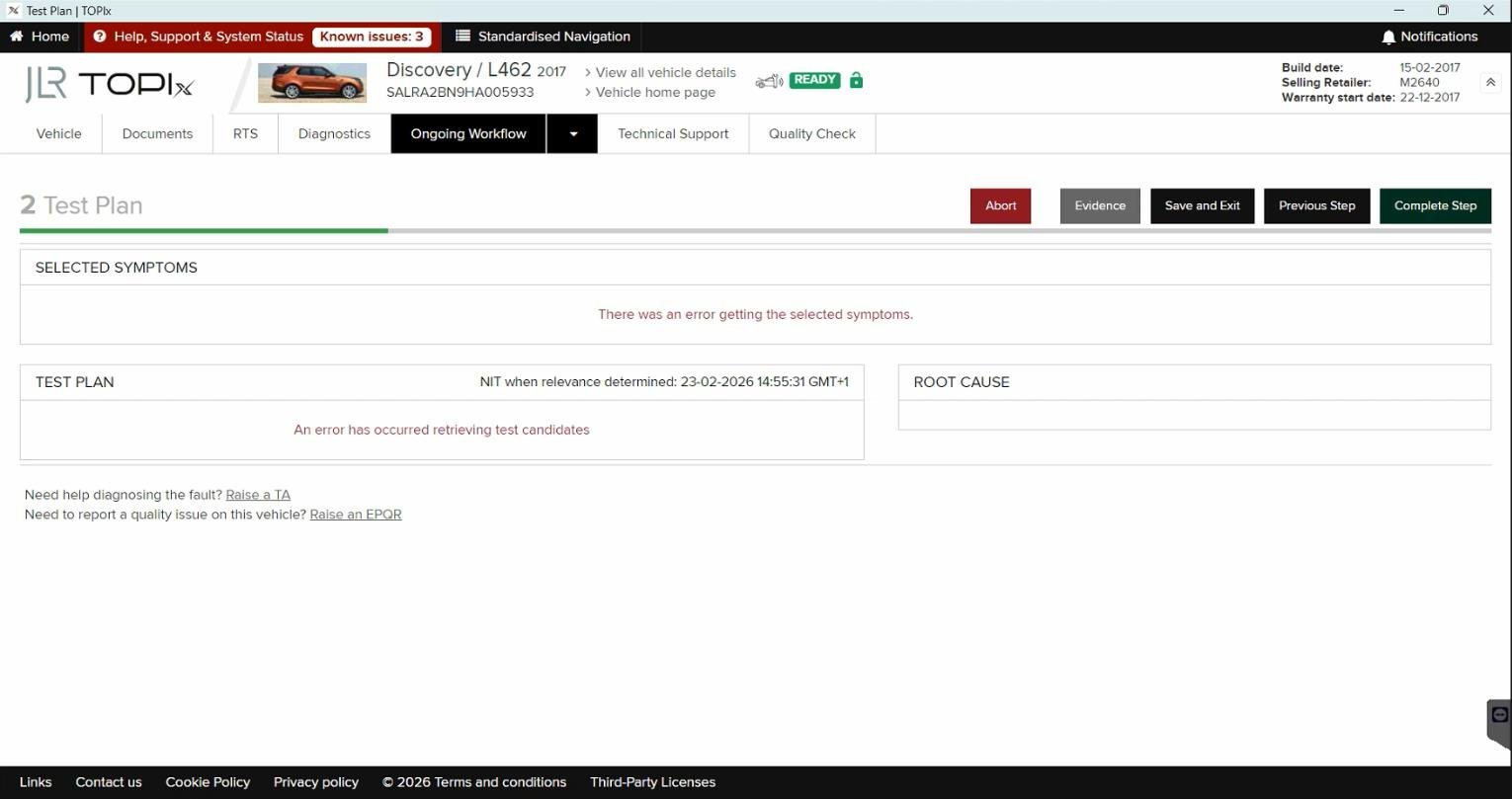

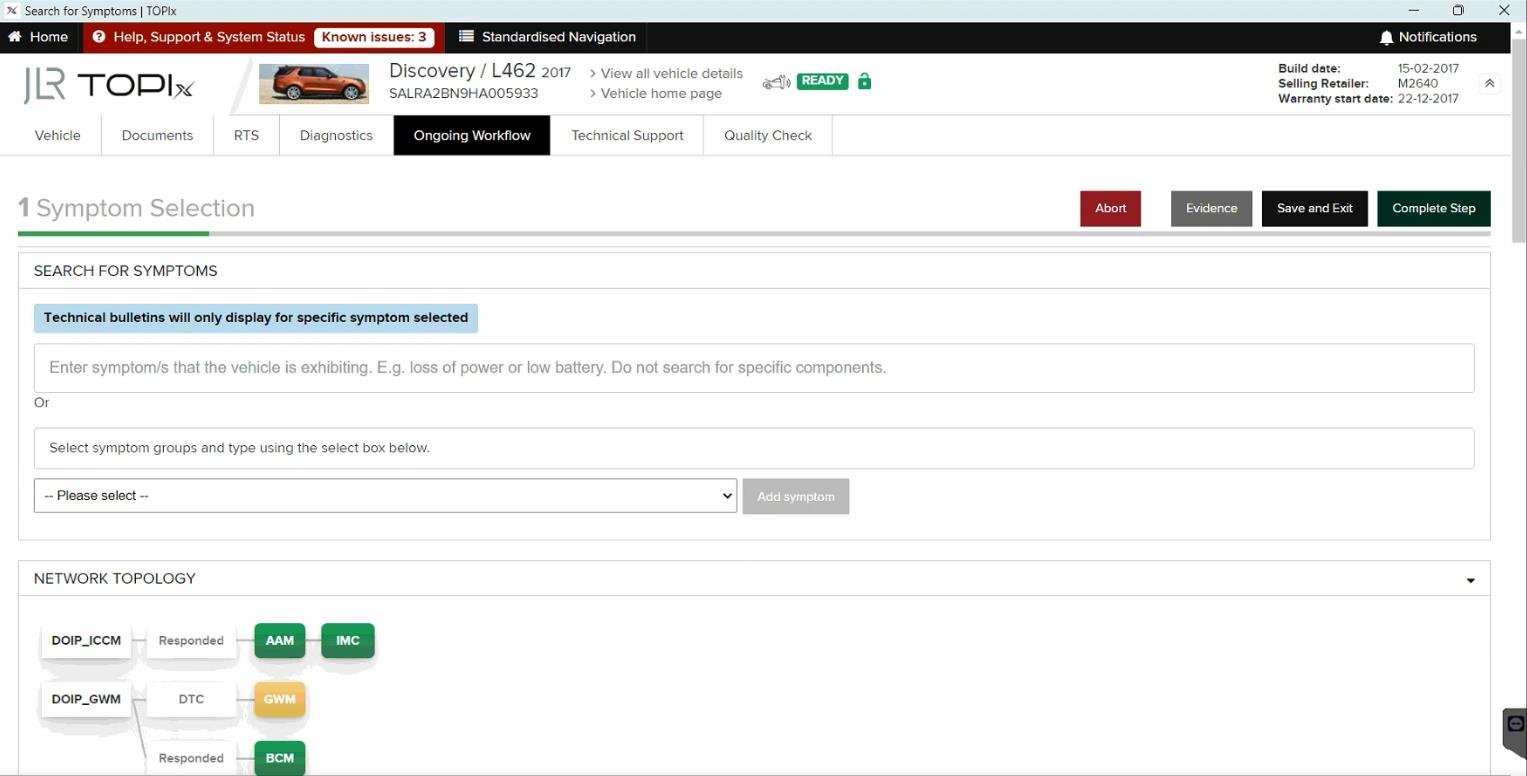

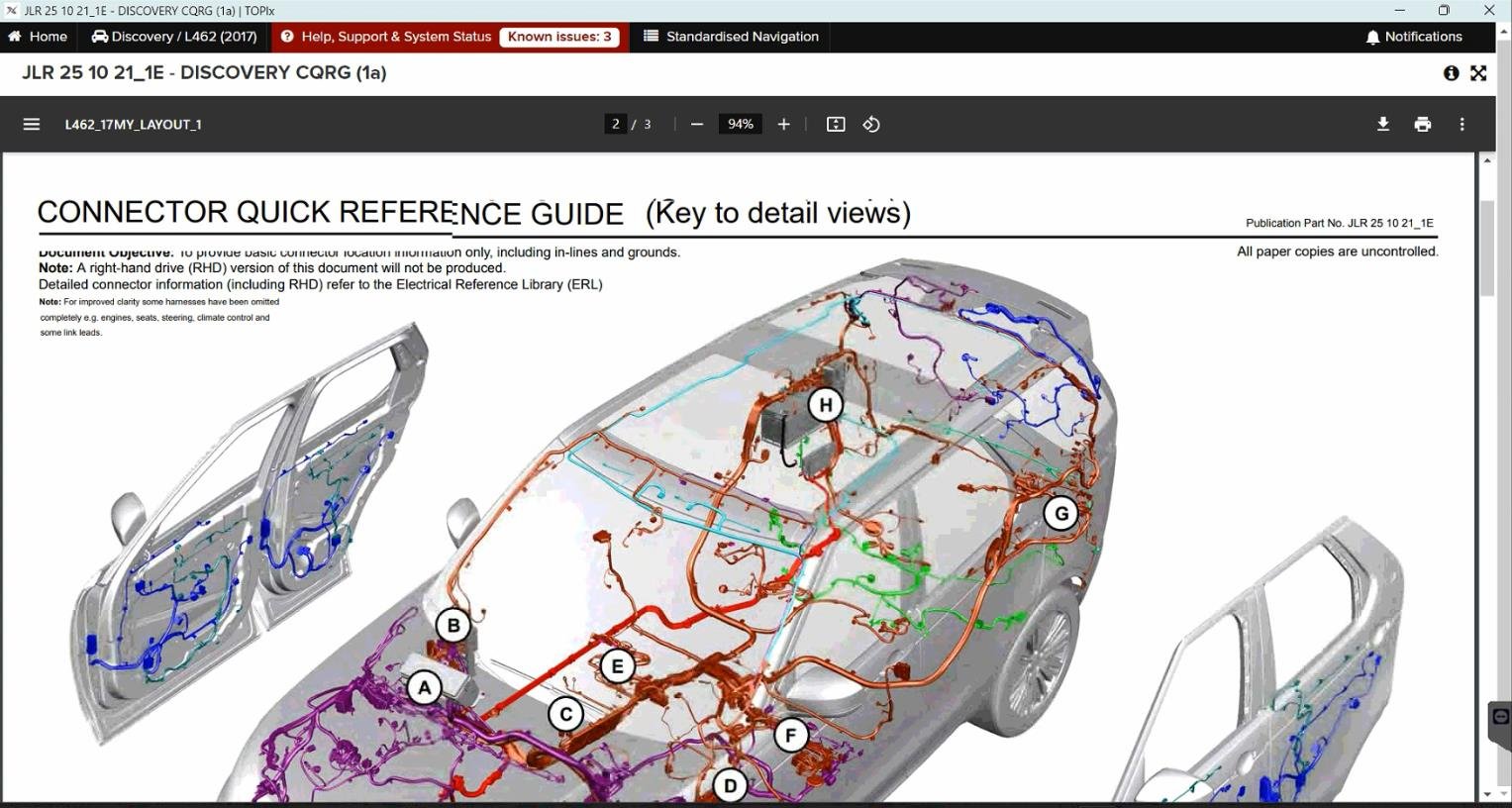

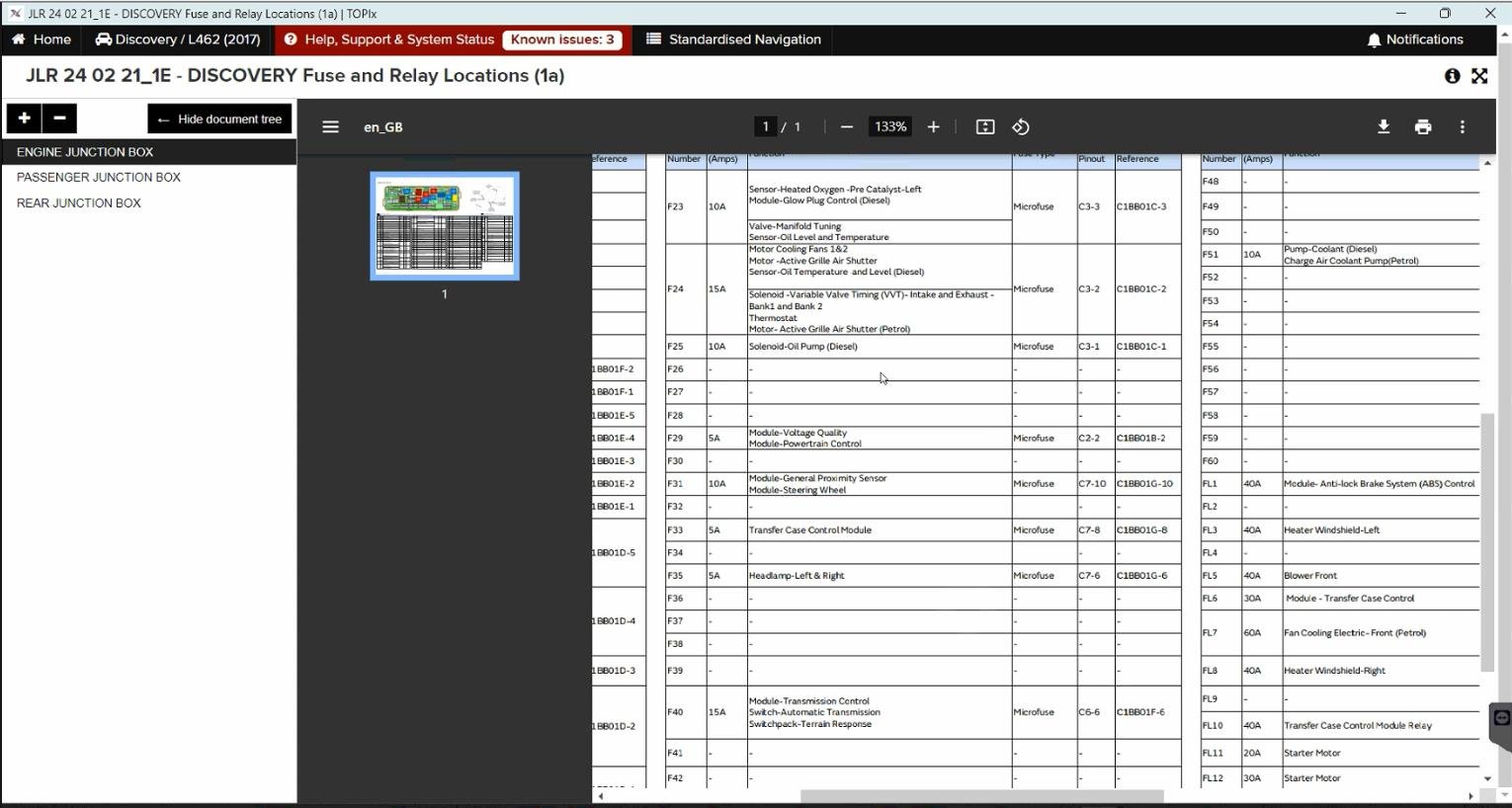

• Guided fault‑finding workflows, OEM service procedures, wiring diagrams, pin‑out references and active TSB lookup for supported JLR VIN

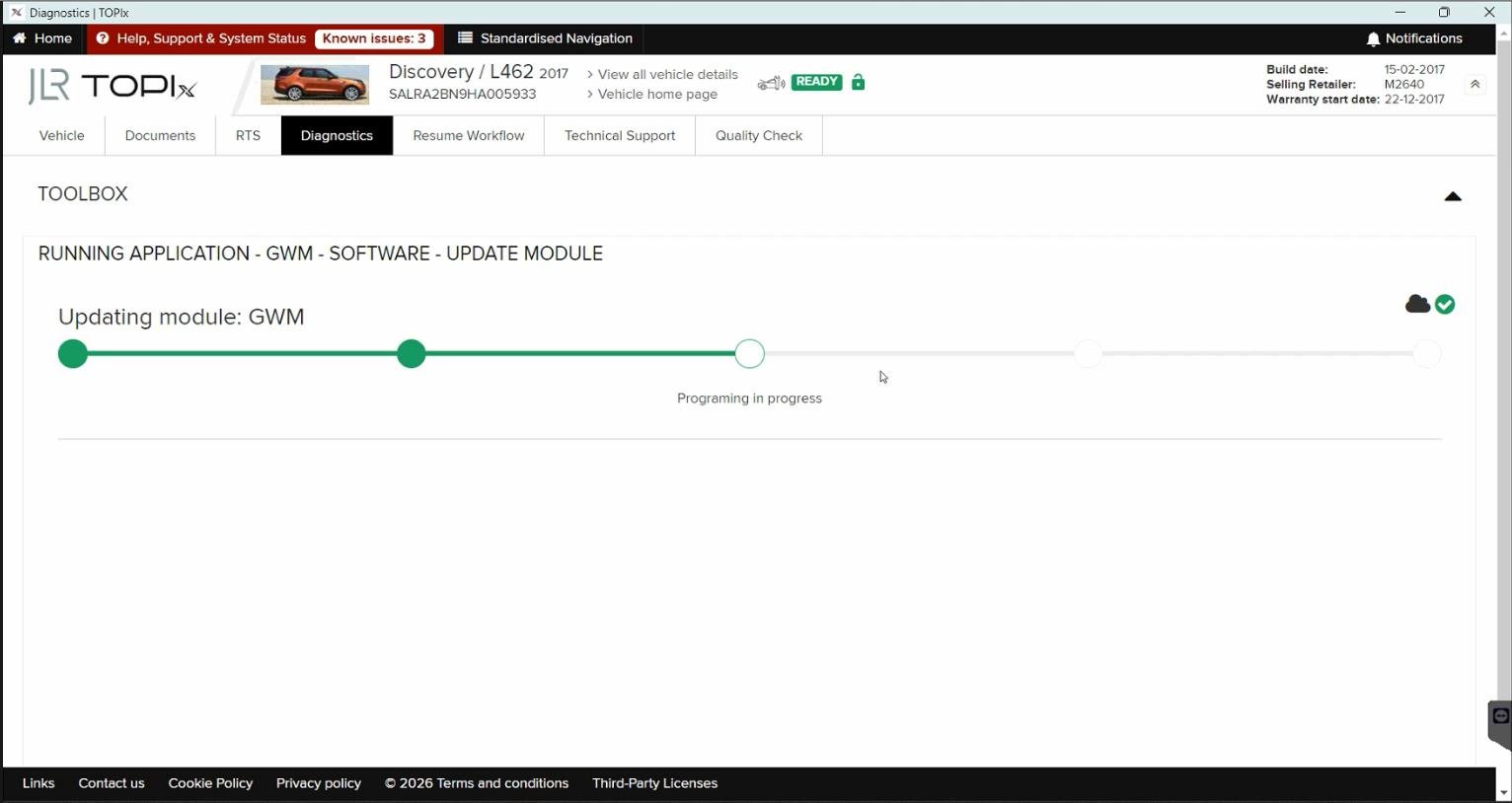

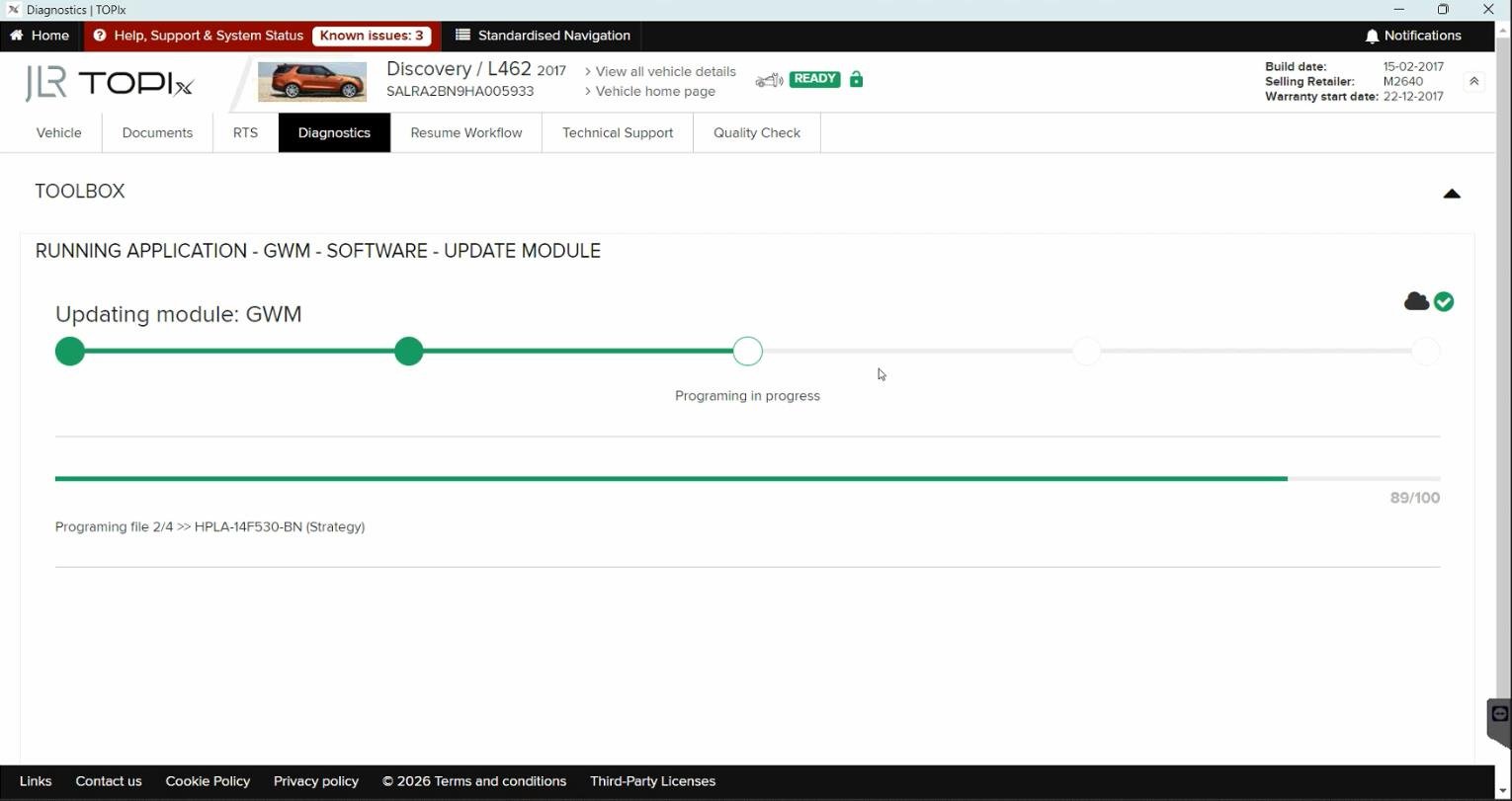

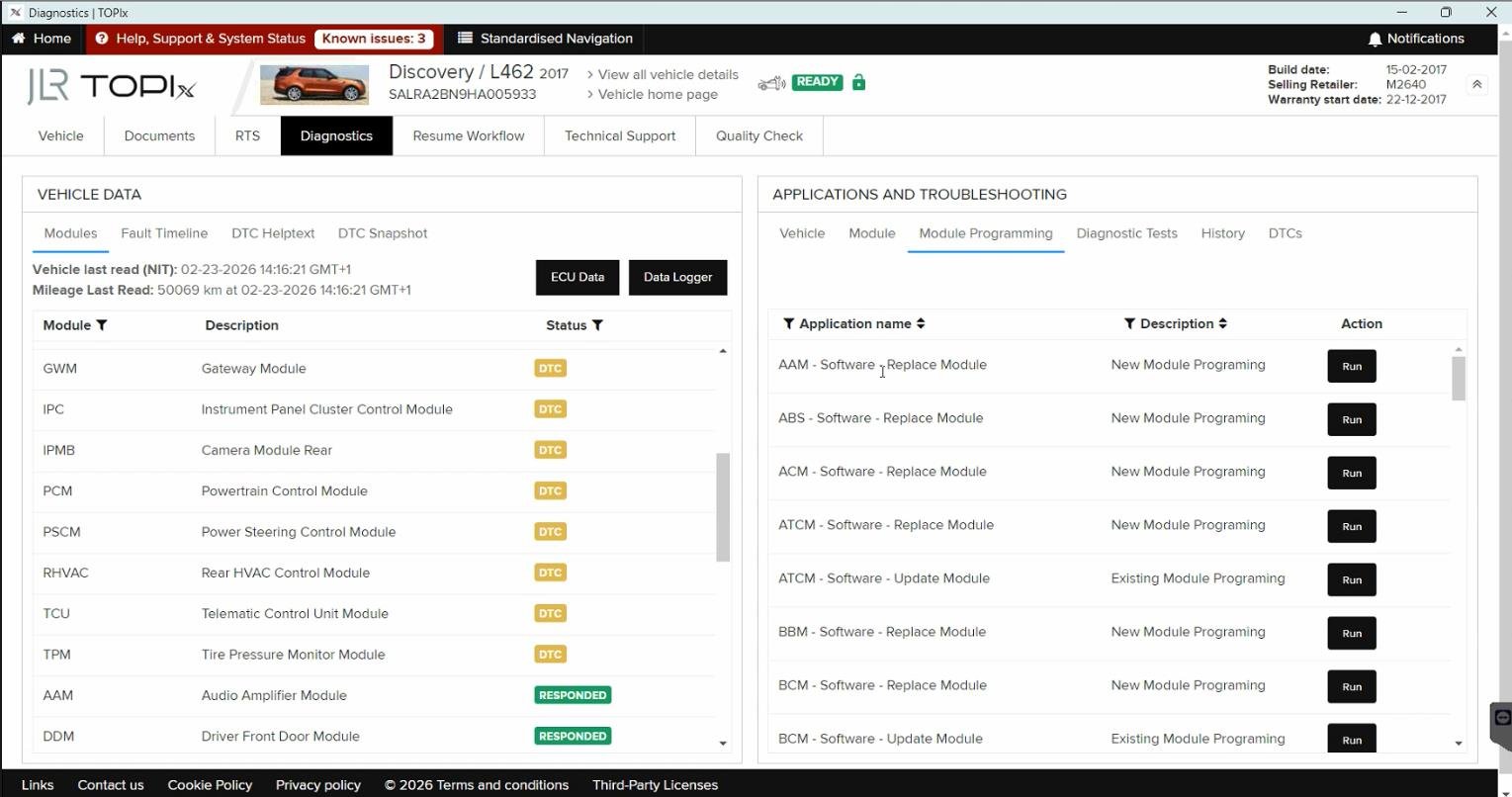

• Authorised online module programming: download genuine factory VBF firmware, perform ECU, TCU, BCM and gateway flash operations with automated checksum validation
• Secure‑gateway authenticated CCF read‑backup‑edit‑write workflows, variant coding and configuration repair for module replacement jobs
• ADAS calibration guidance for radar‑camera driver‑assistance systems and SOTA software‑over‑the‑air diagnostic routines
• Secure domain authentication for late‑model 2022‑2026 vehicles fitted with enhanced cybersecurity gateway modules.

System, Hardware & Important Technical Limitations

Supported vehicles: MY2017‑2026 DoIP‑based Jaguar Land Rover range. Host PC requirement: Windows 10 / Windows 11 64‑bit, Chrome or Edge browser plus installed DDA Diagnostic Device Agent. Compatible DoIP VCI / ENET‑WiFi or XOBD‑Enet hardware is mandatory for vehicle communication. Stable high‑speed internet connection and regulated 12‑V vehicle power supply are critical during flash cycles to avoid module corruption. This demo is designed for evaluation purposes; security‑critical key‑programming workflows may require additional Trust‑Centre accreditation even within the active 24‑hour window. After session expiry, all cloud‑dependent write‑functions will lock; locally‑saved documentation may remain on your workstation.

What This 1‑Day Demo Provides

• Activation token for 24‑consecutive‑hour Demo JLR TOPIx Cloud access for MY2017‑2026 DoIP vehicles
• Setup reference documentation covering DDA installation, VCI configuration and session activation steps
• Best‑practice guidance for flashing and CCF modification workflows during the limited trial window
