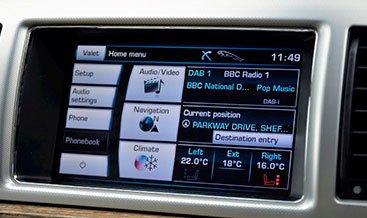

Navigation update InControl Touch Plus (GEN 2.1)

Technical Overview

The InControl Touch‑Plus Gen 2.1 infotainment platform operates on JLR legacy CAN‑bus networks; navigation functionality depends on three critical components: Gen 2.1 navigation‑capable IMC hardware, correctly‑set CCF navigation‑enable flags and region‑code settings, plus valid HERE map‑database files delivered via USB‑storage media. The master CCF stores navigation‑present flags and geographic‑region parameters inside infotainment‑domain blocks; incorrect values will hide navigation menus even when physical hardware is present. This workflow reads and backs‑up original CCF, adjusts navigation‑feature and region‑configuration flags, runs multi‑module integrity validation and writes corrected dataset over OBD‑II J2534 interface. Post‑write, controlled IMC cold‑reboot is required for menu changes to apply. Map‑database files are customer‑supplied official Gen 2.1 USB‑map media; this service performs OBD configuration and diagnostic validation, it does not supply map‑data files. Full roll‑back can be completed restoring original backed‑up CCF file.

Core Technical Service Capabilities

• Infotainment‑domain CCF parameter modification: enable navigation‑feature flags and correct geographic region‑codes for Gen 2.1 InControl Touch‑Plus hardware‑equipped vehicles
• Pre‑write multi‑module CCF integrity validation preventing invalid infotainment‑region‑navigation parameter combinations before committing changes to IMC memory
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying Gen 2.1 navigation‑related infotainment‑changes
• Infotainment diagnostic routines: read IMC DTC faults, verify IMC firmware revision, pre‑update health‑check and post‑map‑update navigation‑function validation
• Supports MY2014‑2016 legacy CAN‑bus Gen 2.1 InControl Touch‑Plus architectures; not compatible with newer InControl Touch‑Pro or Pivi‑Pro DoIP‑systems
• Session‑log generation capturing vehicle VIN, timestamp, original‑and‑modified infotainment‑CCF‑parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisite: vehicle must be factory‑fitted with navigation‑capable InControl Touch‑Plus Gen 2.1 IMC head‑unit hardware. Coding cannot add navigation functionality to non‑navigation Gen 2.1 hardware variants. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence and J2534‑2 compliant CAN‑pass‑through interface. Stable regulated 12 V battery supply must be maintained for CCF‑write cycles and IMC reboots. Gen 2.1 map‑database USB‑media must be sourced separately from official JLR navigation channels; Gen 2.1 has reached end‑of‑official‑map‑development lifecycle for some world‑regions.

What This Service Includes

• Gen 2.1 InControl Touch‑Plus navigation‑feature‑activation and region‑correction CCF‑coding workflow for hardware‑qualified‑compatible‑JLR‑CAN‑bus‑vehicles
• Infotainment‑domain CCF backup‑restore tool‑set for Gen 2.1 navigation‑related‑configuration‑datasets
• Technical‑documentation: pre‑update‑hardware‑verification‑checklist, coding‑procedure and post‑USB‑map‑installation‑function‑testing‑guidance for Gen 2.1 systems.
