Terrain Response 2 AUTO

Technical Overview

Terrain Response 2 AUTO continuously analyses wheel‑slip signals, steering‑angle data, accelerator‑pedal position and vehicle‑speed inputs across multiple ECUs. The ATCM evaluates this sensor data and automatically engages the most suitable terrain preset; drivers retain full manual override to select fixed terrain modes at any time. Feature‑enablement requires coordinated CCF edits inside ATCM chassis‑blocks alongside infotainment‑cluster HMI flags to render the AUTO‑mode selection menu and status indicators. This coding workflow reads and backs‑up the original factory CCF dataset, enables Terrain‑Response‑2‑AUTO fitment‑flags, executes cross‑module integrity validation and writes modified configuration back via OBD‑II connection. Post‑write, controlled ATCM, DSC and powertrain‑module resets plus full‑vehicle sleep‑wake cycle are mandatory for AUTO‑mode logic and on‑screen menu entries to initialise. This is purely software‑based activation; full Terrain Response 2 physical hardware must already be factory‑installed. Full roll‑back to factory‑spec can be achieved restoring the backed‑up original CCF file.

Core Technical Activation Capabilities

• Multi‑block ATCM chassis‑domain CCF‑parameter modification unlocking Terrain Response 2 AUTO for Terrain‑Response‑2‑hardware‑equipped JLR vehicles

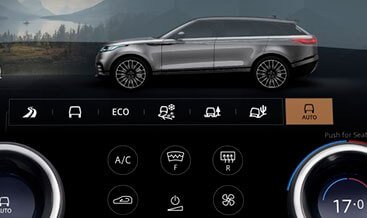

• Enables automatic terrain‑surface detection, auto‑selection of terrain programmes, instrument‑cluster status indication and rotary‑controller AUTO‑mode menu access, with full manual‑mode override capability
• Pre‑write cross‑module CCF integrity validation preventing incompatible ATCM‑DSC‑PCM‑TCM parameter combinations before committing changes to vehicle ECUs
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying Terrain‑Response‑2‑AUTO‑related chassis‑changes
• Chassis diagnostic routines: read ATCM, DSC, PCM and TCM DTC faults; verify pre‑activation and post‑activation TR2‑AUTO feature‑flag‑status
• Session‑log generation capturing vehicle VIN, timestamp and modified chassis‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisites: vehicle must have factory‑fitted complete Terrain Response 2 system, functional ATCM all‑terrain‑control‑module, AWD transfer‑case, DSC stability‑control and terrain‑monitoring sensor suite. Terrain Response 2 AUTO cannot be enabled‑by‑coding‑alone if any required off‑road chassis‑components are missing or faulty. Supported MY2017‑2025 Range‑Rover, Range‑Rover‑Sport, Defender and Discovery model‑lines. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for chassis‑domain‑configuration‑writes. Terrain Response 2 AUTO is a driver‑aid; driver remains responsible for terrain‑appropriate vehicle‑setup and safe on‑ / off‑road‑operation.

What This Activation Service Includes

• Terrain Response 2 AUTO multi‑block ATCM‑chassis CCF‑coding‑activation workflow for hardware‑qualified‑compatible‑JLR‑vehicles
• Chassis‑domain CCF backup‑restore tool‑set for TR2‑AUTO‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑function‑testing‑guidance‑including‑vehicle‑sleep‑cycle‑instructions
