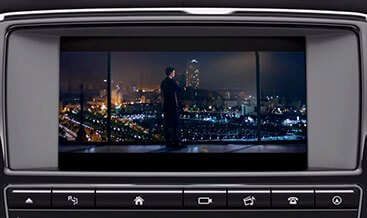

Video in motion

Technical Overview

VIM functionality is governed by dedicated speed‑lock parameters stored within infotainment‑domain blocks of the master vehicle CCF. Factory configuration suppresses video output on the main touch‑screen once vehicle movement is detected via CAN‑bus speed signals from the PCM powertrain module. This coding workflow reads and backs‑up the original factory CCF dataset, adjusts VIM enablement and speed‑threshold flags, executes multi‑module integrity validation and writes modified configuration back via OBD‑II connection. Post‑write, controlled ICM module resets are required for new settings to take‑effect. This modification only applies to vehicles with physical video‑playback capable infotainment hardware; it cannot add video capability to audio‑only head‑units. Full roll‑back to factory video‑lock behaviour can be completed restoring the backed‑up original CCF file.

Core Technical Activation Capabilities

• Infotainment‑domain CCF‑parameter modification to disable factory speed‑based video‑block and enable Video‑in‑Motion playback for hardware‑equipped JLR vehicles
• Pre‑write multi‑module CCF integrity validation preventing invalid infotainment‑speed‑related parameter combinations before committing changes to ICM / ACM module memory
• Complete CCF backup‑restore workflow preserving original factory‑configuration before applying VIM‑related infotainment‑changes
• Infotainment diagnostic routines: read ICM‑ACM DTC faults, verify pre‑activation and post‑activation VIM‑feature‑flag‑status and infotainment firmware revision check
• Supports legacy MY2015‑2016 CAN‑bus platforms and modern MY2017‑2025 ISO 13400‑2 DoIP InControl Touch‑Pro and Pivi‑Pro infotainment‑systems
• Session‑log generation capturing vehicle VIN, timestamp and modified infotainment‑CCF parameters for internal workshop audit‑trail purposes.

Vehicle, Hardware & System Prerequisites

Critical hardware prerequisite: vehicle must be factory‑fitted with video‑playback capable ICM or ACM infotainment hardware. Coding cannot add video‑decoder hardware that is physically absent. Host‑system requirement: Windows 10 / Windows 11 64‑bit PC with valid SX‑TOOL software licence. Use J2534 pass‑through adapters for older CAN‑bus vehicles or Enet‑WiFi / Type‑C Enet‑cable hardware for DoIP‑platform vehicles. Stable regulated 12 V battery supply is mandatory for CCF‑write cycles and infotainment module resets. Some late‑model secure‑gateway‑protected vehicles may require supplementary online authorisation for infotainment‑domain configuration writes. Important note: VIM is intended exclusively for passenger entertainment; driver must not view moving‑video content while operating the vehicle and must comply with all local traffic‑regulations.

What This Activation Service Includes

• Video‑in‑Motion (VIM) CCF‑coding‑activation workflow for video‑hardware‑qualified compatible JLR vehicles
• Infotainment‑domain CCF backup‑restore tool‑set for VIM‑related‑configuration‑datasets
• Technical documentation: pre‑activation‑hardware‑verification‑checklist, coding‑procedure and post‑activation‑video‑playback‑function‑testing‑guidance
